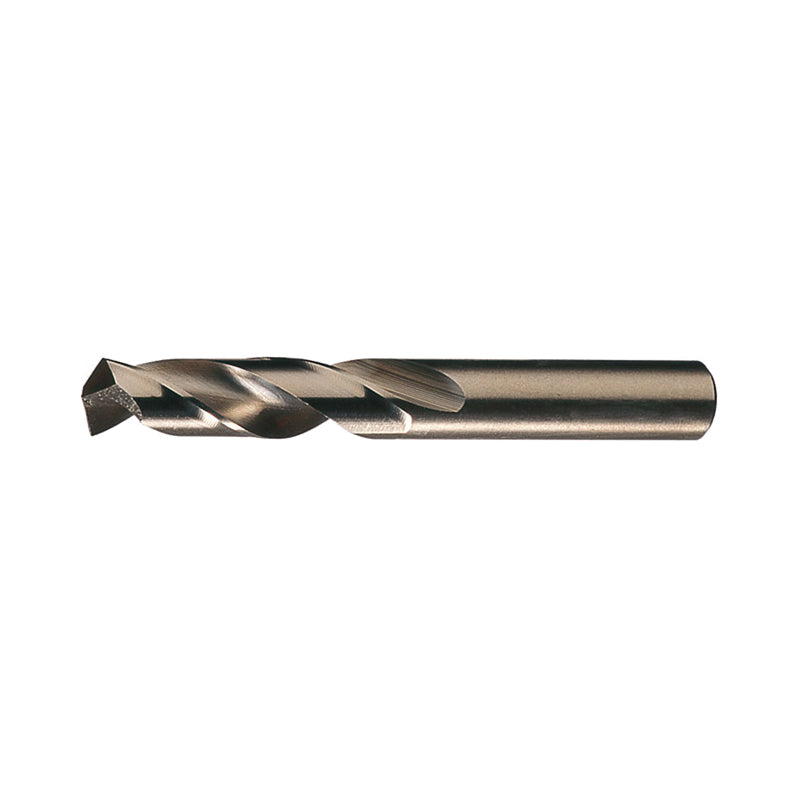

Chicago-Latrobe GREIN-50873CL 50873 559 Heavy Duty Screw Machine Drill #18 Drill - Wire 0.1695 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-50873CL is a heavy duty screw machine drill designed for rigorous applications. This drill is part of the 559 series and features a #18 wire drill size with a decimal inch measurement of 0.1695. It is built with a straight shank and a right spiral flute geometry, providing efficient cutting performance across various materials.

• Compatible with alloy steel, carbon steel, cast iron, and tool steel.
• Features 135-degree split point for enhanced penetration.
• Durable M42 HSS-Co 8 material ensures longevity and reliability.

Product Highlights

This drill is ideal for drilling tougher materials by hand or machine. Its short flute and overall length enhance rigidity, minimizing deflection during heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50873CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial

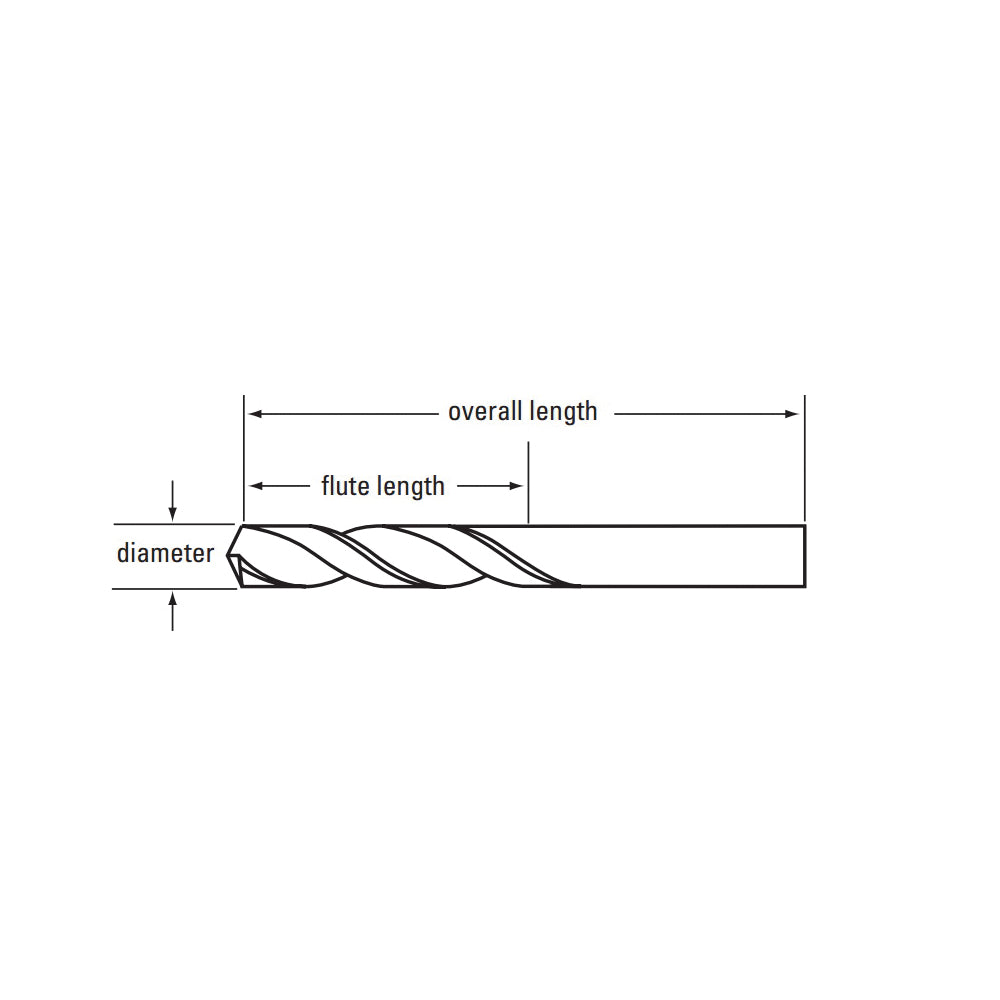

• Flute Length: 1-1/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/8 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 0.1695 in Dia x 1.0625 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #18
• Drill Size - Decimal Inch: 0.1695 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
