Chicago-Latrobe GREIN-50870CL Chicago-Latrobe® 50870 559 Heavy Duty Screw Machine Drill #15 Drill - Wire 0.18 in Drill - Decimal Inch

Product Description

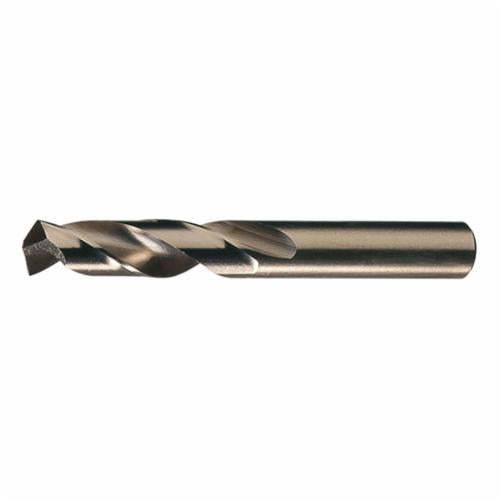

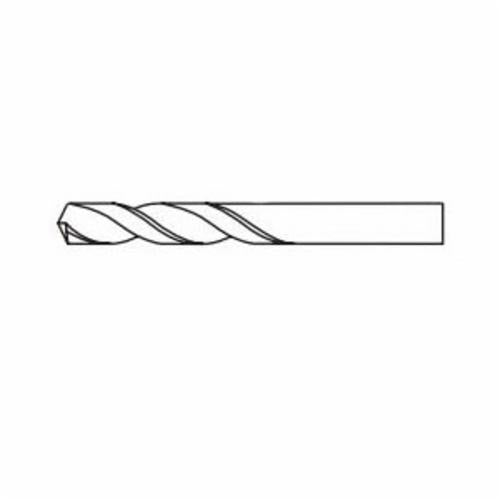

The Chicago-Latrobe® Screw Machine Drill, model GREIN-50870CL, is designed for drilling tough materials. This heavy-duty tool is part of the 559 series, featuring a #15 wire drill size with a diameter of 0.18 inches. It has an overall length of two and three-sixteenths inches and a cutting depth of three times the diameter. The drill has two flutes and a right spiral design, providing efficient chip removal.

• Suitable for drilling alloy steel, carbon steel, cast iron, and tool steel.
• Self-centering P3 split point reduces thrust for easier penetration.
• Straw finish for easy identification in cobalt tooling.

Product Highlights

This drill is ideal for hand or machine use, providing superior rigidity with its short flute design, minimizing deflection during heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe®
• MPN: GREIN-50870CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-1/8 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-3/16 inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 559
• Shank Size: 0.18 inches diameter x 1.0625 inches length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #15
• Drill Size - Decimal Inch: 0.18 inches
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
