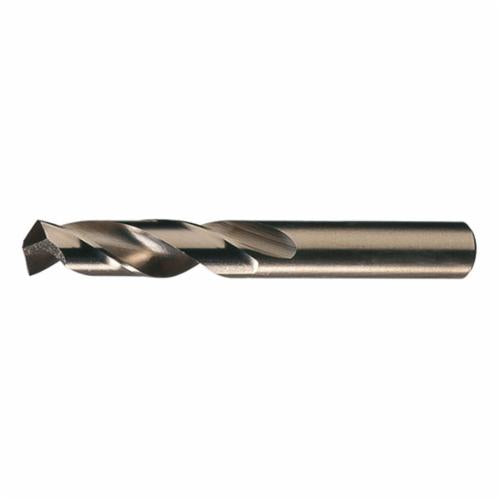

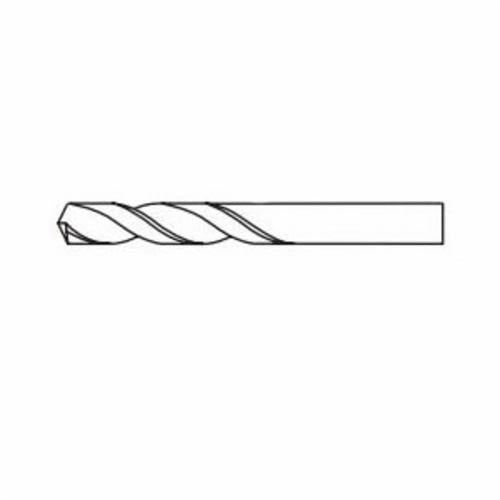

Chicago-Latrobe GREIN-50858CL 50858 559 Heavy Duty Screw Machine Drill, #3 Drill - Wire, 0.213 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-50858CL is a heavy-duty screw machine drill designed for drilling tougher materials. It features a #3 drill size with a diameter of zero point two one three inches and an overall length of two and three-eighths inches. This drill is made from M42 HSS-Co 8 material, providing durability and strength for various applications.

• Heavy-duty geometry for enhanced performance
• Shorter flute length ensures less deflection
• Self-centering split point for easier penetration

Product Highlights

This drill is perfect for drilling alloy steel, carbon steel, cast iron, and tool steel by hand or machine.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50858CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-1/4 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-3/8 in
• Point Angle: 135 deg
• Point Type: Split
• Shank Size: 0.213 in Dia x 1.125 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #3
• Drill Size - Decimal Inch: 0.213 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, and Tool Steel
