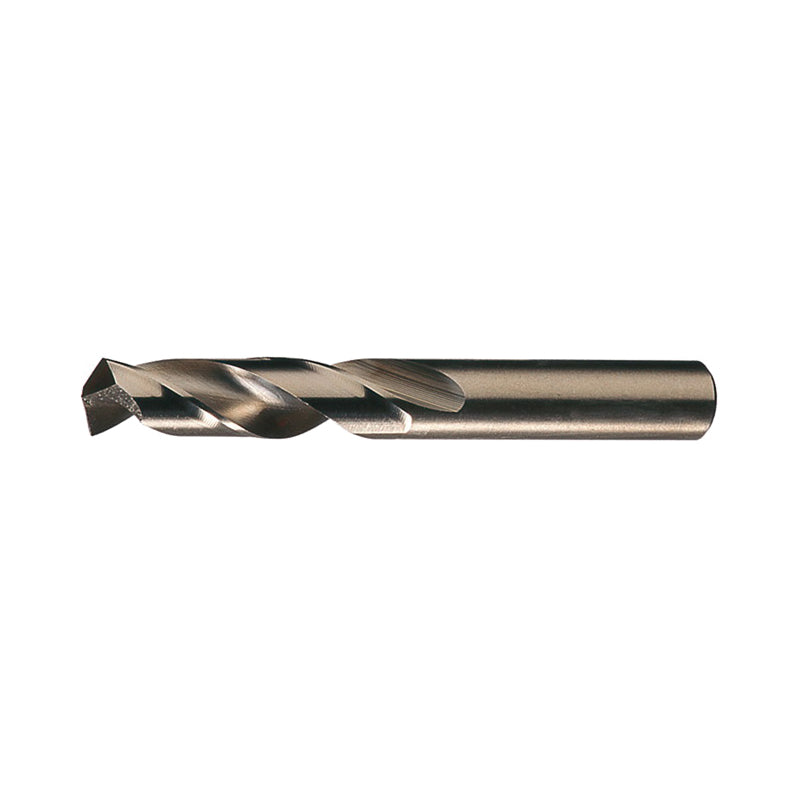

Chicago-Latrobe GREIN-50848CL Heavy Duty Screw Machine Drill S Drill - Letter 0.348 in

Product Description

The Chicago-Latrobe GREIN-50848CL is a heavy-duty screw machine drill suitable for various applications. This drill features a letter size S with a diameter of 0.348 inches. Its overall length is three and one-sixteenth inches, making it suitable for both manual and machine use.

• Heavy duty geometry for tougher materials
• Right hand cutting direction with a split point for easy penetration
• Compatible with alloy steel, carbon steel, cast iron, and tool steel

Product Highlights

This drill offers a three times diameter cutting depth and features a shorter flute and overall length for added rigidity.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50848CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-3/4 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-1/16 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 0.348 in Dia x 1.3125 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Letter: S
• Drill Size - Decimal Inch: 0.348 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
