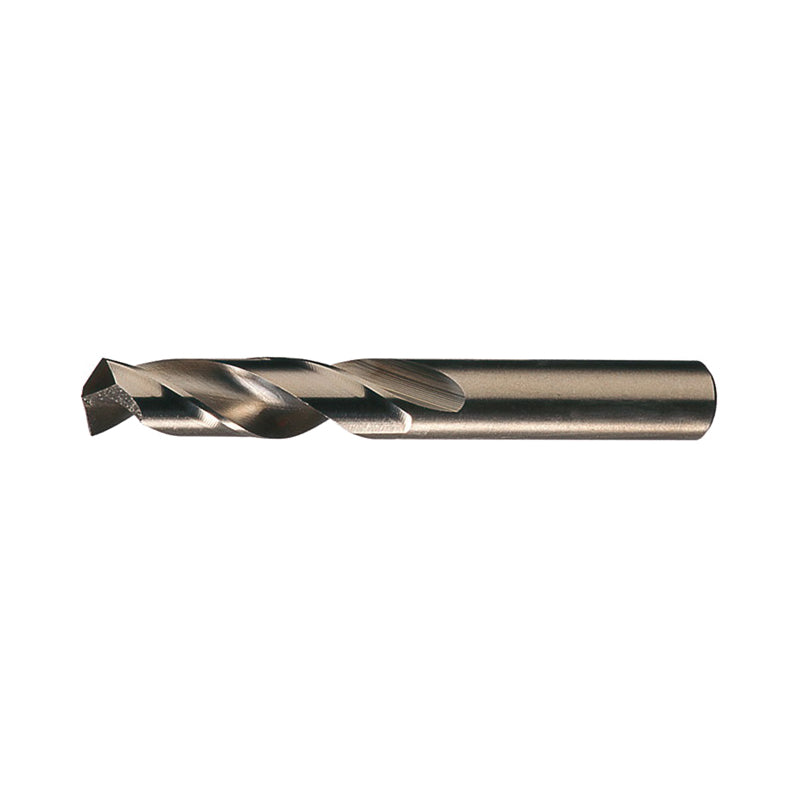

Chicago-Latrobe GREIN-50839CL 50839 559 Heavy Duty Screw Machine Drill J Drill 0.277 in

Product Description

The Chicago-Latrobe GREIN-50839CL is a heavy-duty screw machine drill made for efficient drilling. This product is designed with a J drill type and a decimal inch drill size of 0.277 inches. It features a total length of two and eleven sixty-fourths inches and a cutting depth of three times the diameter.

• Drill Type: J Drill
• Material: M42 HSS-Co 8
• Flute Quantity: Two

Product Highlights

This drill is suitable for a variety of materials, including alloy steel, carbon steel, cast iron, and tool steel.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50839CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-1/2 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-11/16 inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 559
• Shank Size: 0.277 inches Diameter x 1.1875 inches Length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Letter: J
• Drill Size - Decimal Inch: 0.277 inches
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
