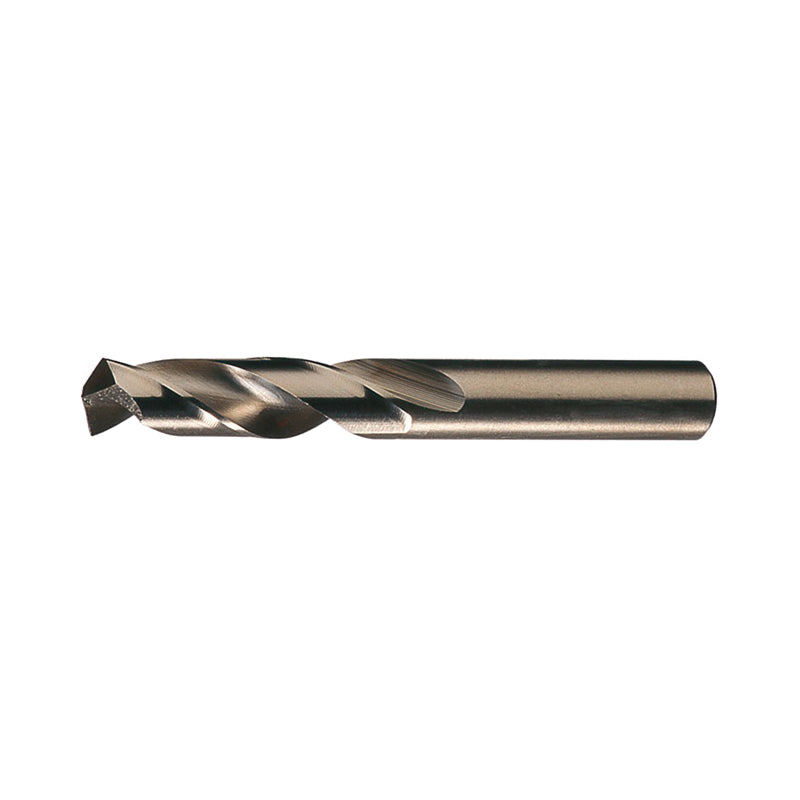

Chicago-Latrobe GREIN-50810CL 50810 559 Heavy Duty Screw Machine Drill 13/64 in Drill - Fraction

Product Description

The Chicago-Latrobe GREIN-50810CL is a screw machine drill designed for heavy-duty applications. This drill measures thirteen sixty-fourths of an inch in diameter. The drill bit is suited for drilling alloy steel, carbon steel, cast iron, and tool steel. It is part of the 559 series, known for its durability.

• Heavy-duty design for drilling tough materials.
• Right-hand cutting direction with a split point for easier penetration.
• Compatible with a variety of materials including alloy and carbon steel.

Product Highlights

This drill provides a shorter flute for improved rigidity and minimal deflection during use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50810CL

Technical Specifications

• Overall Length: 2-1/4 inches
• Flute Length: 1-3/16 inches
• Cutting Depth: 3XD
• Flutes: 2
• Drill Diameter: 13/64 inches
• Material: M42 HSS-Co 8
• Finish: Straw
• Point Angle: 135 degrees
• Point Type: Split
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
