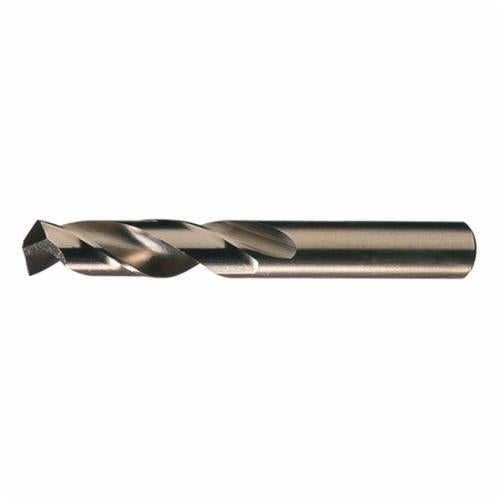

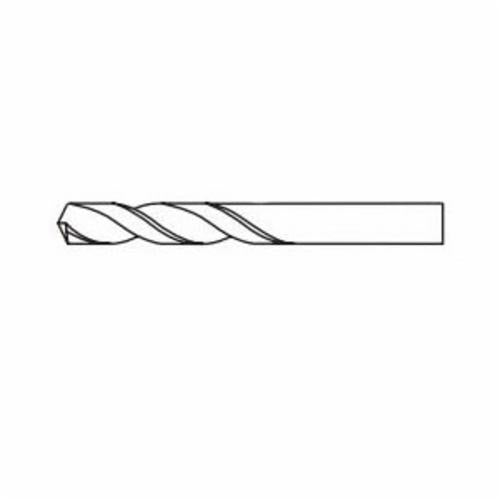

Chicago-Latrobe GREIN-50806CL Heavy Duty Screw Machine Drill 9/64 in

Product Description

The Chicago-Latrobe GREIN-50806CL is a heavy-duty screw machine drill designed for tough drilling applications. This drill features a diameter of 9/64 inches and a decimal size of 0.1406 inches. The overall length measures one and fifteen-sixteenths inches, making it suitable for various drilling projects.

• Heavy duty geometry for drilling tougher materials
• Short length for improved rigidity
• Self-centering P3 split point for reduced thrust

Product Highlights

Ideal for use with alloy steel, carbon steel, cast iron, and tool steel. The drill provides superior performance in drilling operations executed by hand or machine.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50806CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 15/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-15/16 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 9/64 in Dia x 1 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Fraction: 9/64 in
• Drill Size - Decimal Inch: 0.1406 in
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
