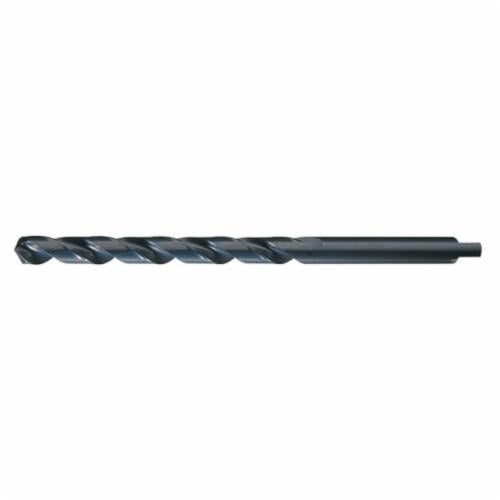

Chicago-Latrobe GREIN-49526CL General Purpose Taper Length Drill 13/32 in Drill - Fraction 0.4062 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-49526CL is a general purpose taper length drill suitable for a variety of drilling needs. With a fractional drill size of thirteen thirty-seconds of an inch and a decimal size of zero point four zero six two inches, this drill offers versatility for professionals. It is seven inches in overall length with a cutting depth of four and three-eighths inches.

• Compatible with carbon steel, alloy steel, and cast iron
• Spiral flute design enhances chip flow
• Manufactured from high-speed steel for durability

Product Highlights

This drill features a tanged shank designed for use with positive split-sleeve drivers. Its taper length allows for deeper drilling, making it suitable for tasks requiring longer drill bits.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49526CL

Technical Specifications

• Drill Size - Fraction: 13/32 in
• Drill Size - Decimal Inch: 0.4062 in
• Overall Length: 7 in
• Cutting Depth: 4-3/8 in
• Flute Length: 4-3/8 in
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Point Angle: 118 deg
• Cutting Edge Material: HSS
• Finish: Black Oxide
• Shank Size: 0.4062 in
• Shank Type: Tanged
• Series: 255AN
• Applicable Materials: Carbon Steel, Alloy Steel and Cast Iron
