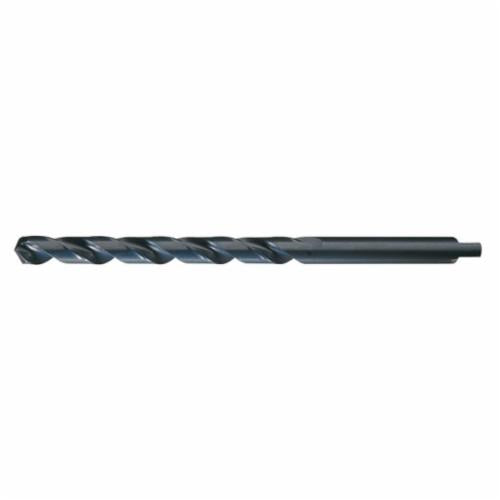

Chicago-Latrobe GREIN-49524CL General Purpose Taper Length Drill 3/8 in Drill - Fraction 0.375 in Drill - Decimal Inch

Product Description

Chicago-Latrobe GREIN-49524CL is a general purpose taper length drill designed for multiple applications. This drill features a three-eighths inch drill size and an overall length of six and three-fourths inches. The tool is ideal for use in cutting carbon steel, alloy steel, and cast iron.

• General purpose geometry for versatility
• Tanged shank for compatibility with split-sleeve drivers
• HSS cutting edge with black oxide finish for durability

Product Highlights

This drill bit offers reliable performance in metalworking tasks including automotive applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49524CL

Technical Specifications

• Drill Size - Fraction: 3/8 in
• Drill Size - Decimal Inch: 0.375 in
• Overall Length: 6-3/4 in
• Cutting Depth: 4-1/4 in
• Flute Length: 4-1/4 in
• Shank Size: 3/8 in
• Shank Type: Tanged
• Cutting Edge Material: HSS
• Finish: Black Oxide
• Flute Type: Spiral
• Point Type: Standard
• Point Angle: 118 deg
• Cutting Direction: Right Hand
• Applicable Materials: Carbon Steel, Alloy Steel and Cast Iron
• Series: 255AN
• Type: General Purpose
