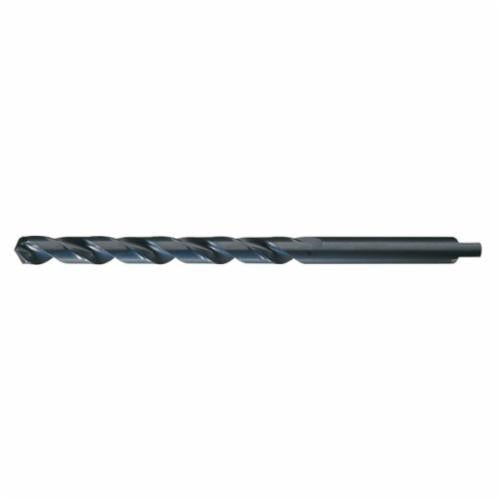

Chicago-Latrobe GREIN-49519CL General Purpose Taper Length Drill 19/64 inch

Product Description

Chicago-Latrobe GREIN-49519CL is a general purpose taper length drill designed for precision and efficiency. It features a drill size of nineteen sixty-fourths of an inch in fractional measurements and a decimal size of zero point two nine six nine inches. The overall length of this drill is six and three-eighths inches, making it suitable for deep drilling applications.

• Manufactured from high-speed steel (HSS)
• Spiral flute design for efficient chip removal
• Right hand cutting direction for enhanced drilling performance

Product Highlights

This drill is ideal for use on materials such as carbon steel, alloy steel, and cast iron. Its taper length design ensures increased depth and flute length, while its durable black oxide finish offers improved wear resistance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49519CL

Technical Specifications

• Applicable Materials: Carbon Steel, Alloy Steel and Cast Iron
• Cutting Depth: 4 inches
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Flute Length: 4 inches
• Flute Type: Spiral
• Point Angle: 118 degrees
• Point Type: Standard
• Series: 255AN
• Shank Size: 0.2969 inches
• Shank Type: Tanged
• Type: General Purpose
• Drill Size - Fraction: 19/64 inches
• Drill Size - Decimal Inch: 0.2969 inches
• Overall Length: 6-3/8 inches
• Material: HSS
• Finish: Black Oxide
