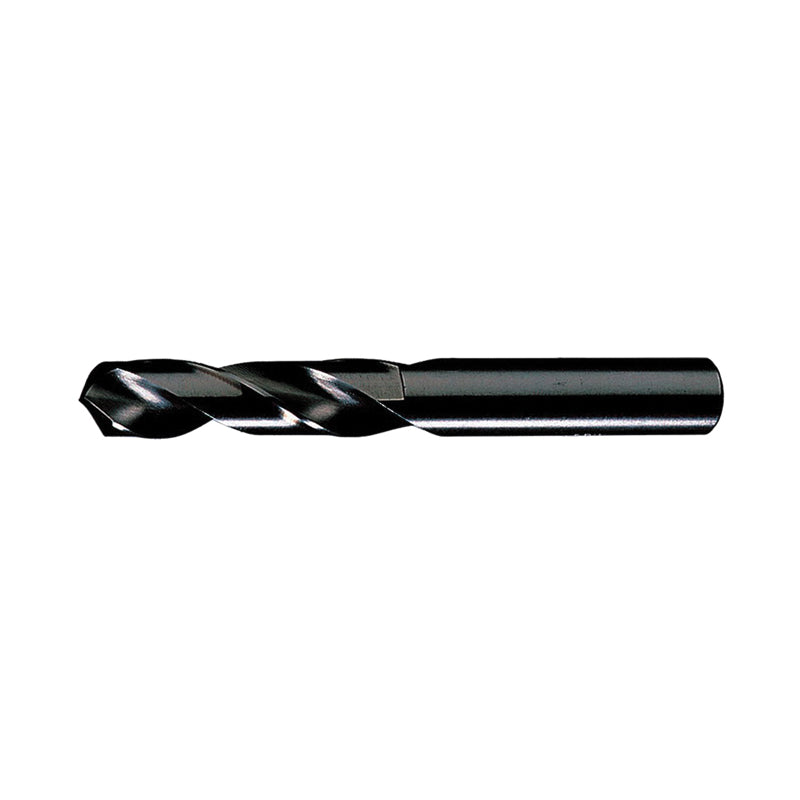

Chicago-Latrobe GREIN-49414CL 49414 159 Heavy Duty Screw Machine Drill #44 Drill - Wire 0.086 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-49414CL is a heavy-duty screw machine drill designed for various applications. It features a #44 drill size with a diameter of 0.086 inches. The drill is built with high-speed steel (HSS) and has a black steam oxide finish for durability. It measures one and three-quarters inches in overall length and offers a cutting depth of three times the diameter.

• Constructed from high-speed steel (HSS)
• Right-hand cutting direction with a split point design
• Suitable for alloy steel, carbon steel, cast iron, and tool steel

Product Highlights

This drill provides excellent performance in challenging materials and is well-suited for both manual and machine-operated drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49414CL

Technical Specifications

• Type: Heavy Duty
• Material: HSS
• Finish: Black Steam Oxide
• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Drill Diameter Measurement System: Imperial

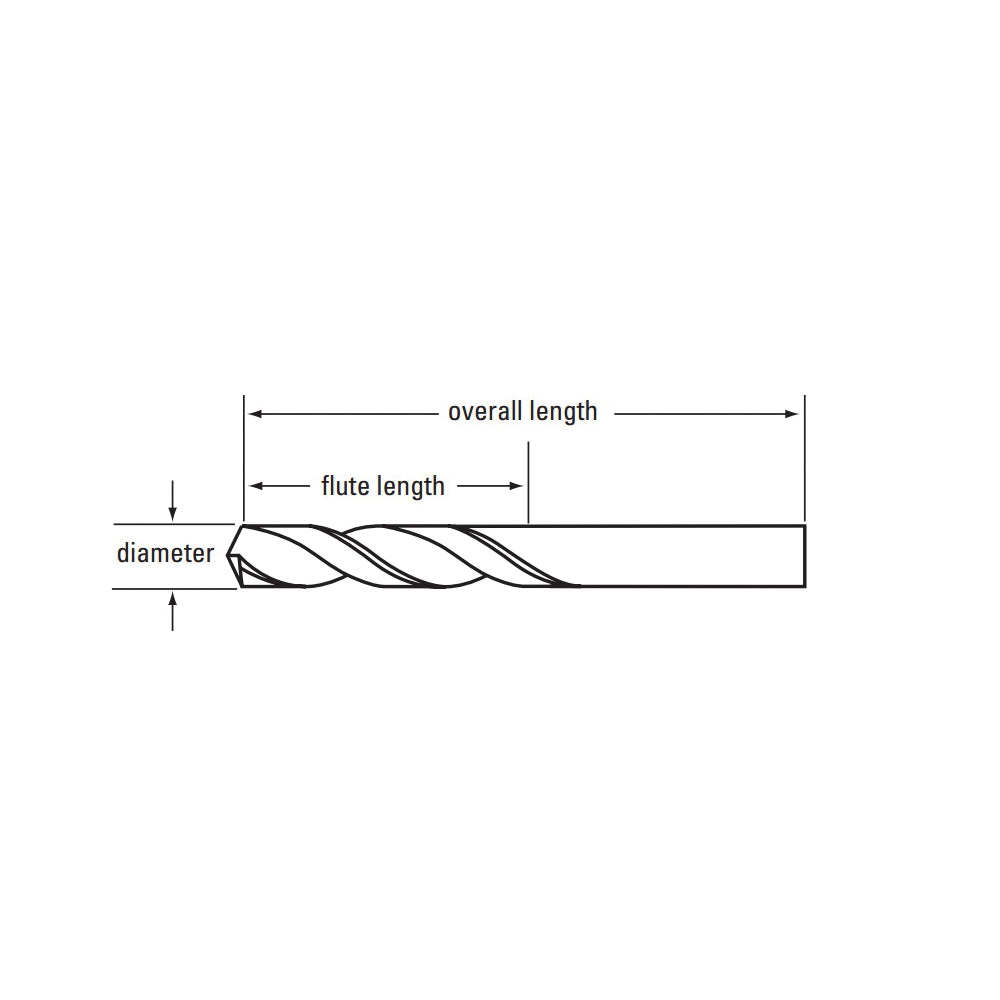

• Overall Length: 1-3/4 in
• Point Angle: 135 deg
• Point Type: Split
• Flute Type: Right Spiral
• Flute Length: 3/4 in
• Number of Flutes: 2
• Drill Size - Wire: #44
• Drill Size - Decimal Inch: 0.086 in
• Shank Size: 0.086 in Dia x 1 in L
• Shank Type: Straight
