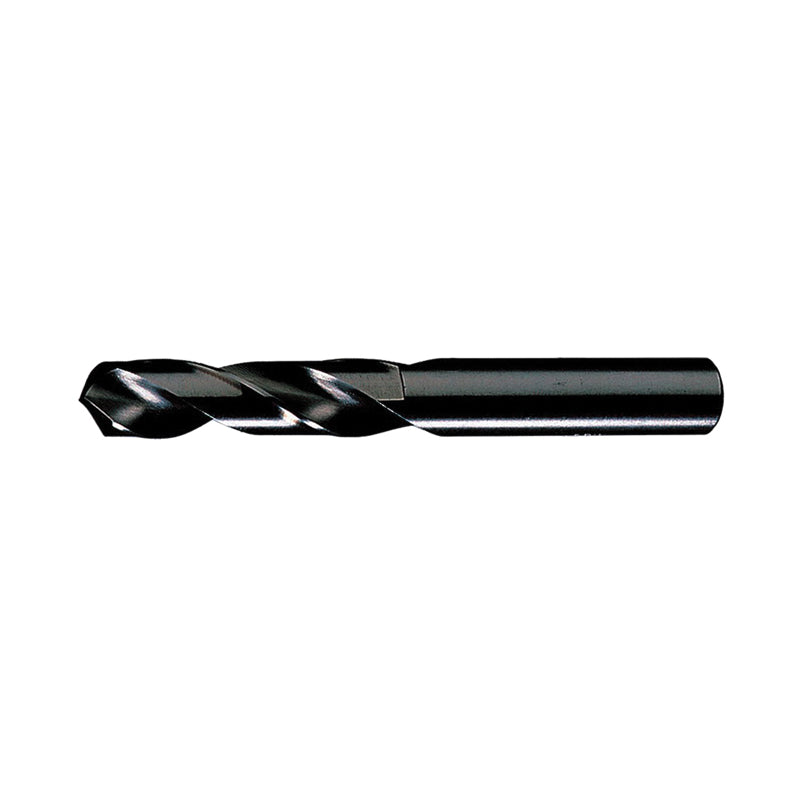

Chicago-Latrobe GREIN-49385CL 159 Heavy Duty Screw Machine Drill #15 Drill - Wire 0.18 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-49385CL is a heavy-duty screw machine drill designed for demanding applications. This drill features a diameter of 0.18 inches and a length of two and three-sixteenth inches. It is ideal for drilling tougher materials like alloy steel, carbon steel, cast iron, and tool steel.

• Type: Heavy Duty
• Flute Type: Right Spiral
• Point Type: Split

Product Highlights

This drill incorporates advanced geometry for better performance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49385CL

Technical Specifications

• Overall Length: 2-3/16 inches
• Cutting Depth: 3XD
• Flute Length: 1-1/8 inches
• Drill Diameter Measurement System: Imperial
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Point Angle: 135 degrees
• Drill Size - Wire: #15
• Drill Size - Decimal Inch: 0.18 inches
• Cutting Edge Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
