Chicago-Latrobe GREIN-49384CL 49384 159 Heavy Duty Screw Machine Drill #14 Drill - Wire 0.182 in Drill - Decimal Inch

Product Description

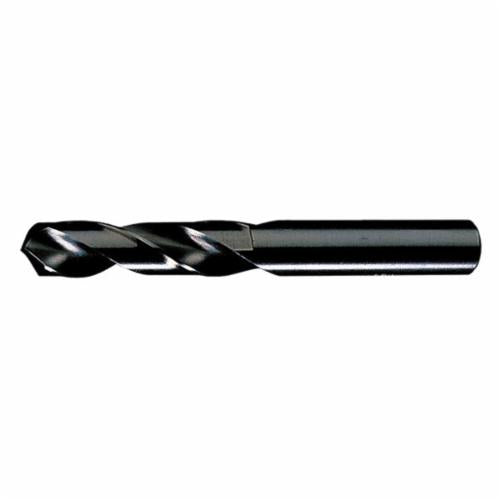

The Chicago-Latrobe GREIN-49384CL is a heavy-duty screw machine drill made for industrial use. The drill size is #14 wire with a diameter of zero point one eight two inches. It features a right hand cutting direction and is ideal for cutting materials like alloy steel, carbon steel, cast iron, and tool steel.

• Heavy duty geometry for enhanced drilling performance
• Right spiral flute design for improved chip removal
• 135-degree point for better self-centering and penetration

Product Highlights

This tool is suitable for drilling tough materials either by hand or using a machine. Its shorter flute length reduces deflection during heavy feed rates.

Product Information

Standard Information

• Type: Heavy Duty
• Brand: Chicago-Latrobe

Technical Specifications

• Model Number: GREIN-49384CL
• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #14
• Drill Size - Decimal Inch: 0.182 inches
• Overall Length: 2-3/16 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Flute Length: 1-1/8 inches
• Cutting Direction: Right Hand
• Point Type: Split
• Cutting Depth: 3XD
• Shank Size: 0.182 inches diameter x 1.0625 inches length
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
