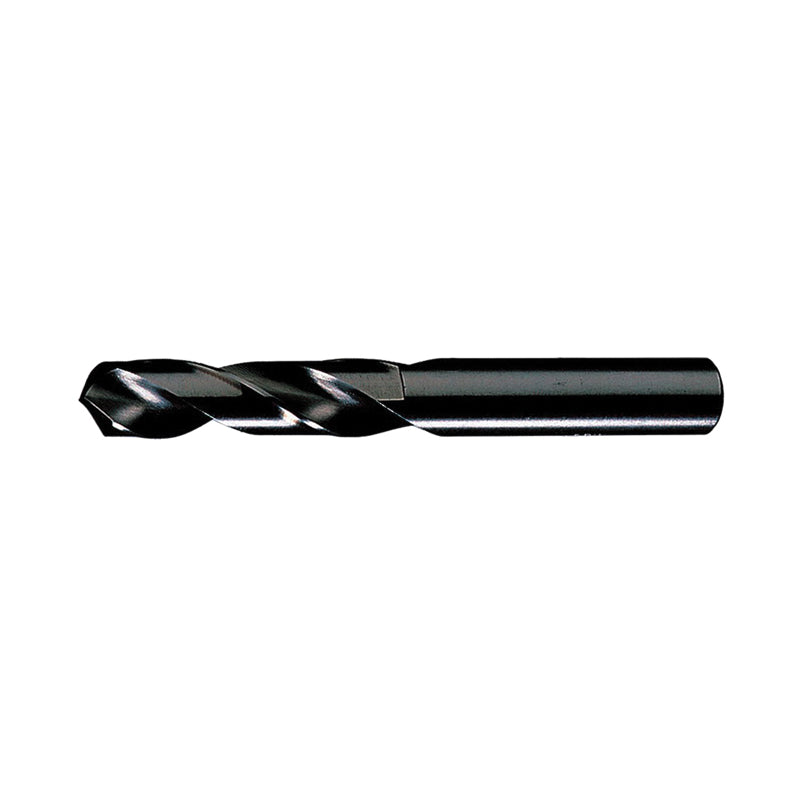

Chicago-Latrobe GREIN-49382CL 49382 159 Heavy Duty Screw Machine Drill #12 Drill - Wire 0.189 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-49382CL is a heavy-duty screw machine drill designed for precision drilling. This drill features a #12 wire size with a diameter of 0.189 inches and is made from high-speed steel. With an overall length of two and one-fourth inches, it has a cutting depth of 3 times the diameter for effective drilling tasks.

• Heavy-duty construction suitable for tough materials.
• Short length enhances rigidity and minimizes deflection.
• 135-degree split point improves self-centering and reduces thrust.

Product Highlights

This drill is ideal for use in various materials, including alloy steel, carbon steel, and cast iron.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49382CL

Technical Specifications

• Type: Heavy Duty
• Material: HSS
• Finish: Black Steam Oxide
• Series: 159
• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #12
• Drill Size - Decimal Inch: 0.189 in

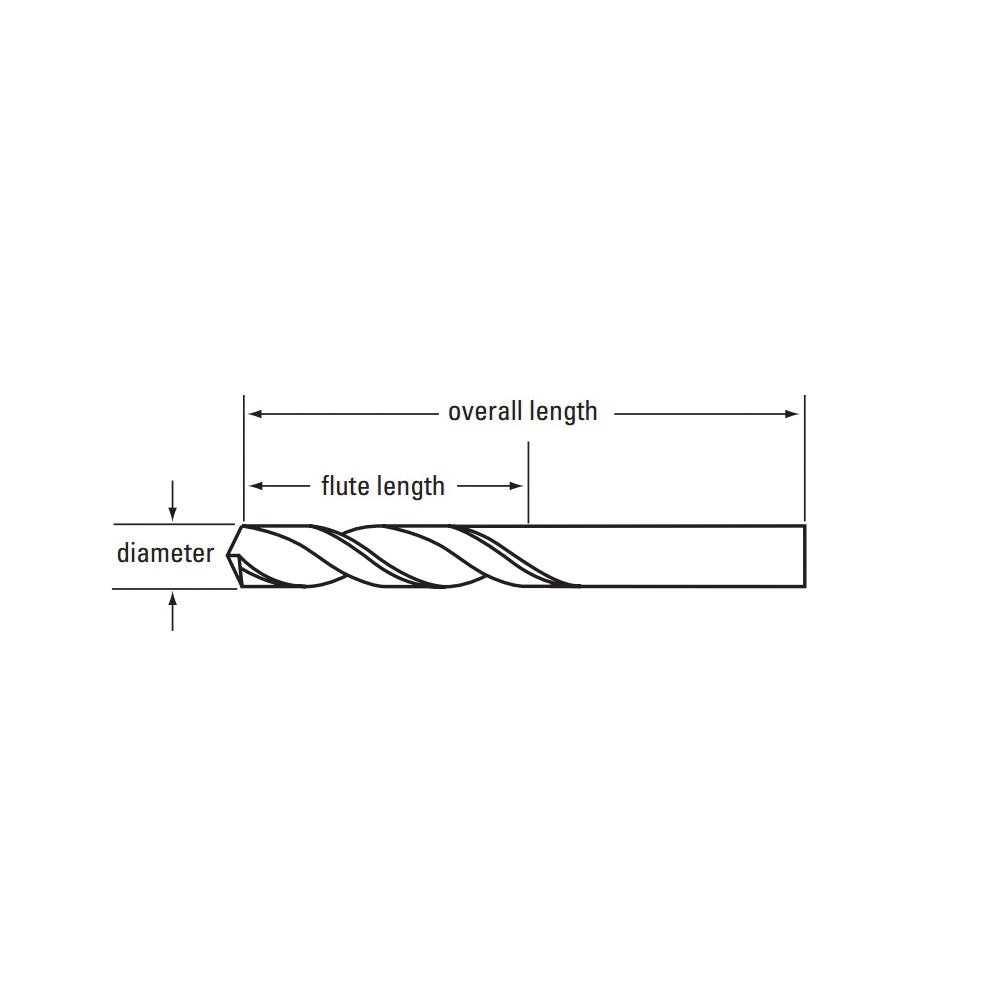

• Overall Length: 2-1/4 in
• Cutting Depth: 3XD
• Flute Type: Right Spiral
• Number of Flutes: 2
• Point Angle: 135 deg
• Point Type: Split
• Shank Size: 0.189 in Dia x 1.0625 in L
• Shank Type: Straight
• Cutting Direction: Right Hand
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
• Cutting Edge Material: HSS
