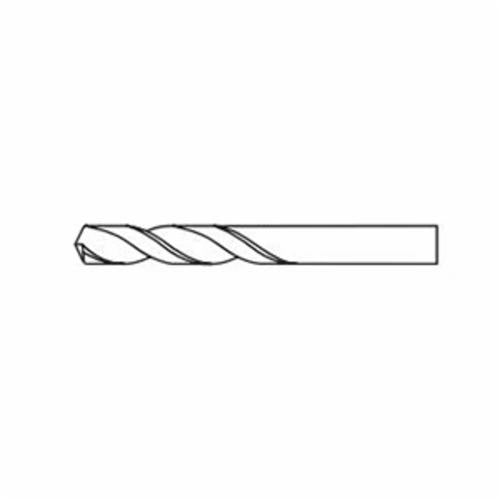

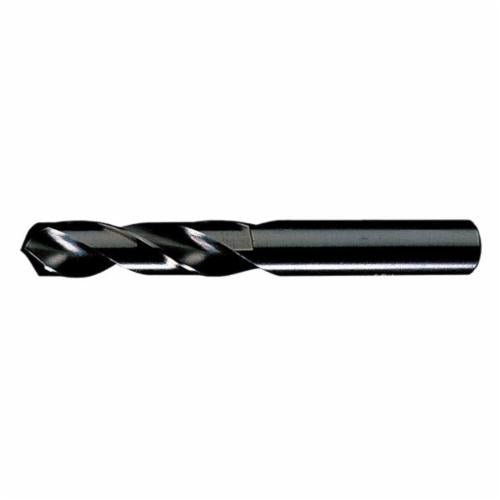

Chicago-Latrobe GREIN-49380CL 49380 Heavy Duty Screw Machine Drill #10 Drill - Wire 0.1935 in

Product Description

The Chicago-Latrobe GREIN-49380CL is a heavy-duty screw machine drill designed for high durability and performance. This drill features a number #10 wire size with a diameter of zero point one nine three five inches. With an overall length of two and one-fourth inches and a cutting depth of three times the diameter, it is effective for various applications.

• Utilizes high-speed steel (HSS) for strength and wear resistance.
• Features a split point design for reduced thrust and easier penetration.
• Ideal for drilling through a variety of materials including alloy steel and carbon steel.

Product Highlights

This drill bit provides excellent rigidity and performance for tough materials, combining a shorter flute length with a strong cutting edge.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49380CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-3/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/4 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 159
• Shank Size: 0.1935 in Dia x 1.0625 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #10
• Drill Size - Decimal Inch: 0.1935 in
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
