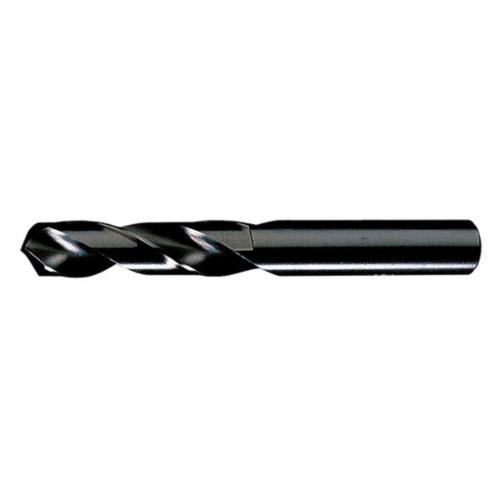

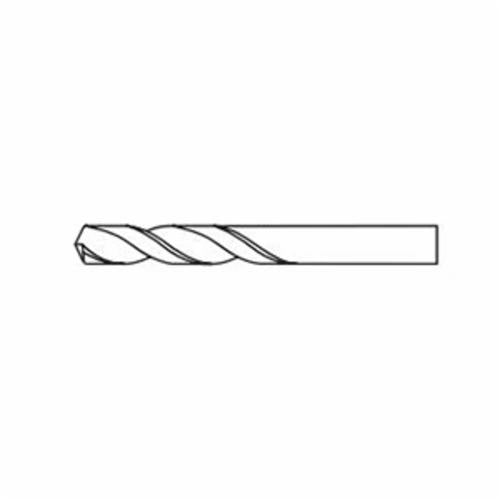

Chicago-Latrobe GREIN-49379CL 49379 159 Heavy Duty Screw Machine Drill #9 Drill - Wire 0.196 in

Product Description

Chicago-Latrobe GREIN-49379CL is a heavy-duty screw machine drill designed for various drilling tasks. This #9 drill has a diameter of 0.196 inches and is suited for working with alloy steel, carbon steel, cast iron, and tool steel.

• 2-1/4 inches overall length
• 0.196 inches diameter with a straight shank
• 135-degree split point for reduced thrust

Product Highlights

This drill features a short flute and overall length, providing better rigidity. The right spiral flute design helps in easier penetration into tougher materials.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49379CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-3/16 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/4 inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 159
• Shank Size: 0.196 inches diameter x 1.0625 inches length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #9
• Drill Size - Decimal Inch: 0.196 inches
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
