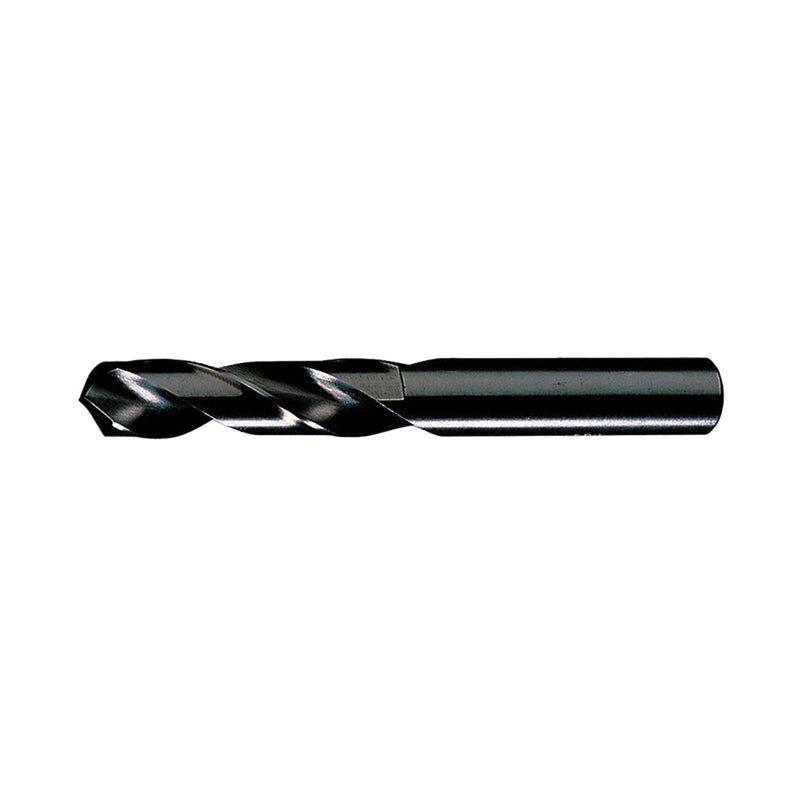

Chicago-Latrobe GREIN-49376CL 49376 159 Heavy Duty Screw Machine Drill #6 Drill - Wire 0.204 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-49376CL is a heavy duty screw machine drill, designed for reliable performance. This drill features a #6 wire size with a diameter of 0.204 inches. It measures two and three-eighths inches in overall length and has a cutting depth of three times the diameter. The drill includes two flutes with a right spiral design for improved efficiency.

• Heavy duty geometry for effective drilling in tough materials.
• Shorter flute length enhances rigidity and minimizes deflection.
• The 135-degree split point allows for self-centering and easier penetration.

Product Highlights

Designed for professionals, this drill bit works well with various materials like alloy steel and cast iron.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49376CL

Technical Specifications

• Overall Length: 2-3/8 inches
• Flute Length: 1-1/4 inches
• Drill Size - Wire: #6
• Drill Size - Decimal Inch: 0.204 inches
• Cutting Depth: 3XD
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
