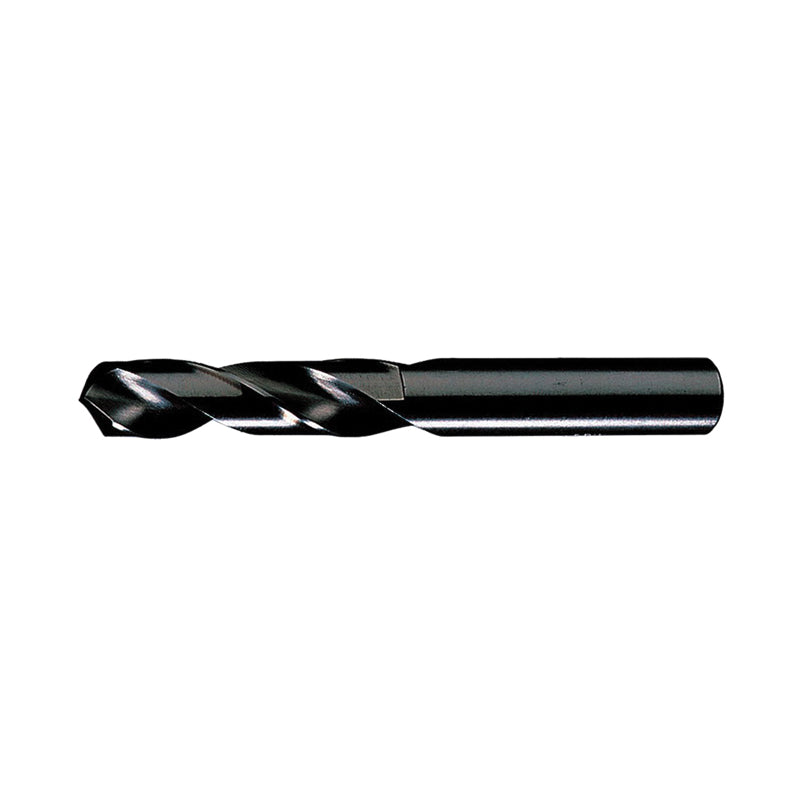

Chicago-Latrobe GREIN-49374CL Heavy Duty Screw Machine Drill #4 Drill - Wire 0.209 in

Product Description

Chicago-Latrobe GREIN-49374CL is a heavy-duty screw machine drill designed for enhanced performance. It has a #4 drill size with a diameter of zero point two zero nine inches. This drill is ideal for use in various materials including alloy steel, carbon steel, cast iron, and tool steel.

• Heavy-duty construction for durability.
• Self-centering 135-degree split point for easier penetration.
• Two-flute design minimizes thrust during drilling.

Product Highlights

This drill is built for both hand and machine use, providing excellent rigidity and cutting efficiency.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Type: Heavy Duty

Technical Specifications

• Drill Size - Wire: #4
• Drill Size - Decimal Inch: 0.209 in
• Overall Length: 2-3/8 in
• Flute Length: 1-1/4 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Cutting Depth: 3XD
• Point Angle: 135 deg
• Point Type: Split
• Shank Size: 0.209 in Dia x 1.125 in L
• Shank Type: Straight
• Cutting Direction: Right Hand
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
