GREENFIELD Chicago-Latrobe GREIN-49232CL Screw Machine Drill 1/2 in Drill - Fraction 0.5 in Drill - Decimal Inch
GREENFIELD Chicago-Latrobe GREIN-49232CL Screw Machine Drill 1/2 in Drill - Fraction 0.5 in Drill - Decimal Inch

Chicago-Latrobe GREIN-49232CL Screw Machine Drill 1/2 in Drill - Fraction 0.5 in Drill - Decimal Inch

Brand: GREENFIELD
SKU: GREIN-49232CL
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

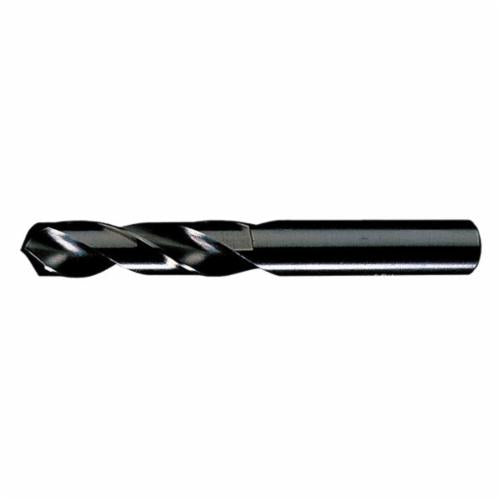

The Chicago-Latrobe GREIN-49232CL Screw Machine Drill is designed for heavy-duty applications. It features a drill size of one-half inch in fraction and zero point five inches in decimal. With an overall length of three and three-fourths inches, this drill maintains rigidity even under heavy feed rates.

  • Drilling tough materials, suited for hand or machine use.
  • Short flute design for improved performance and reduced deflection.
  • Self-centering split point enhances penetration and reduces thrust.

Product Highlights

This drill is effective for various materials such as alloy steel, carbon steel, cast iron, and tool steel.

Product Information

Standard Information

  • Brand: Chicago-Latrobe
  • Mfg Name: Greenfield Industries
Technical Specifications
Cutting Depth
3XD
Cutting Direction
Right Hand
Cutting Edge Material
HSS
Drill Diameter Measurement System
Imperial
Flute Length
2-1/4 in
Flute Type
Right Spiral
Number of Flutes
2
Overall Length
3-3/4 in
Point Angle
135 deg
Point Type
Split
Series
159
Shank Size
1/2 in Dia x 1-1/2 in L
Shank Type
Straight
Type
Heavy Duty
Drill Size - Fraction
1/2 in
Drill Size - Decimal Inch
0.5 in
Finish
Black Steam Oxide
Applicable Materials
Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
