Chicago-Latrobe GREIN-49230CL Chicago-Latrobe 49230 15/32 in Drill

Product Description

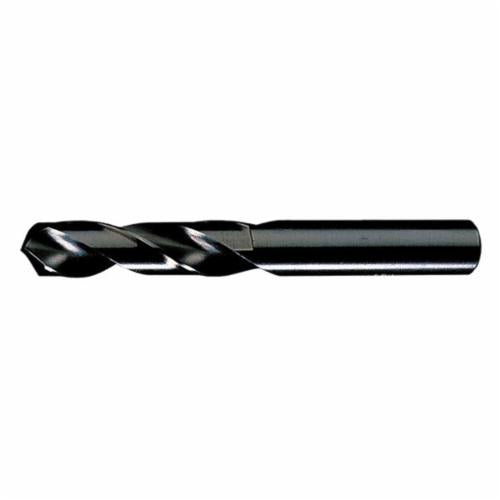

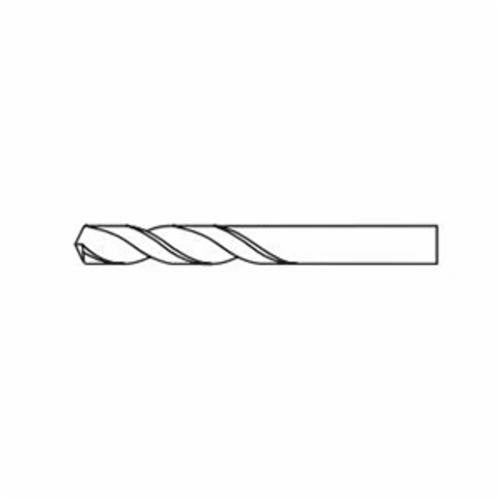

The Chicago-Latrobe GREIN-49230CL is a heavy-duty screw machine drill. It is designed for various applications in drilling. This drill features a diameter of fifteen thirty-seconds inches and a decimal equivalent of zero point four six eight eight inches. It is made of high-speed steel and includes a black steam oxide finish for increased durability.

• 2 flutes and right spiral geometry
• Suitable for alloy steel, carbon steel, cast iron, and tool steel
• 135-degree split point design for easier penetration

Product Highlights

The drill is ideal for drilling tougher materials by hand or with a machine. A shorter flute length provides superior rigidity reducing deflection during heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49230CL

Technical Specifications

• Drill Size - Fraction: 15/32 in
• Drill Size - Decimal Inch: 0.4688 in
• Overall Length: 3-5/8 in
• Cutting Depth: 3XD
• Flute Length: 2-1/8 in
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Point Type: Split
