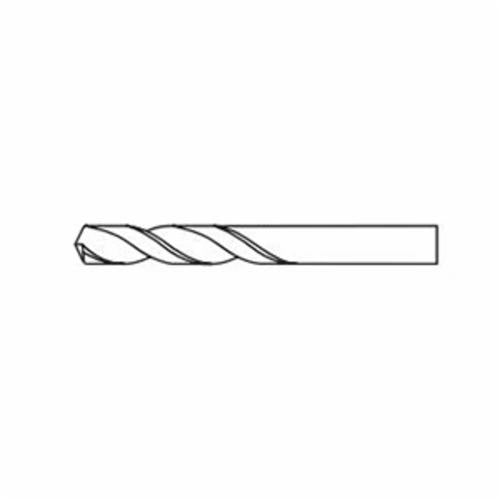

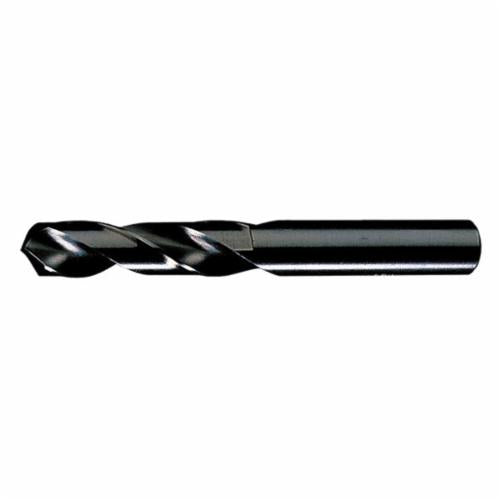

Chicago-Latrobe GREIN-49224CL 49224 3/8 in Drill Heavy Duty

Product Description

The Chicago-Latrobe GREIN-49224CL is a screw machine drill designed for heavy-duty applications. It features a fractional drill size of three-eighths inch and a decimal equivalent of 0.375 inches. The drill has an overall length of three and one-eighth inches, and a cutting depth of three times the diameter. With two flutes and a right spiral design, it offers effective drilling capabilities. This drill is suitable for materials including alloy steel, carbon steel, cast iron, and tool steel.

• Heavy-duty geometry for enhanced drilling strength
• 135-degree split point for self-centering
• Suitable for tougher materials in various applications

Product Highlights

This drill excels in performance, making it ideal for both hand and machine drilling. Its design minimizes deflection, allowing for better control during operations.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Type: Heavy Duty

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-13/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-1/8 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 159
• Shank Size: 3/8 in Dia x 1-5/16 in L
• Shank Type: Straight
• Drill Size - Fraction: 3/8 in
• Drill Size - Decimal Inch: 0.375 in
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
