Product Description

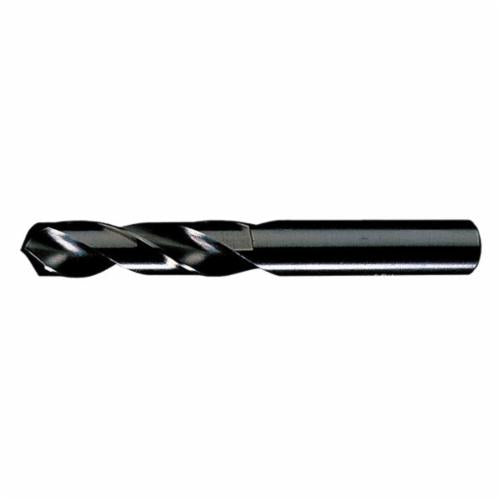

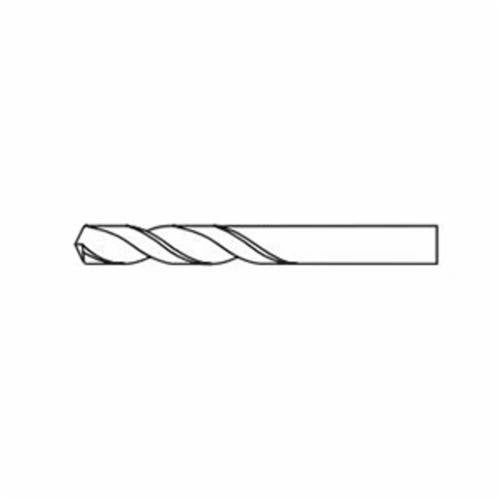

The Chicago-Latrobe GREIN-49221CL is a heavy-duty screw machine drill designed for precision and durability. This drill features a nominal size of 21/64 inches and is suited for both fractional and decimal sizes (0.3281 inches). It is made from high-speed steel (HSS) and finished with black steam oxide, ensuring longevity and resistance to wear.
- Heavy-duty design for enhanced drilling capability
- Compatible with various materials including alloy steel and cast iron
- 135-degree split point enables self-centering and easier penetration
Product Highlights
This drill is ideal for trade professionals and suitable for drilling into tough materials.
Product Information
Standard Information
-
Brand: Chicago-Latrobe
-
MPN: GREIN-49221CL
Technical Specifications
-
Cutting Depth: 3XD
-
Cutting Direction: Right Hand
-
Cutting Edge Material: HSS
-
Drill Diameter Measurement System: Imperial
-
Flute Length: 1-11/16 inches
-
Flute Type: Right Spiral
-
Number of Flutes: 2
-
Overall Length: 2-15/16 inches
-
Point Angle: 135 degrees
-
Point Type: Split
-
Series: 159
-
Shank Size: 21/64 inches diameter x 1.25 inches length
-
Shank Type: Straight
-
Type: Heavy Duty
-
Drill Size - Fraction: 21/64 inches
-
Drill Size - Decimal Inch: 0.3281 inches
-
Material: HSS
-
Finish: Black Steam Oxide
-
Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, and Tool Steel
