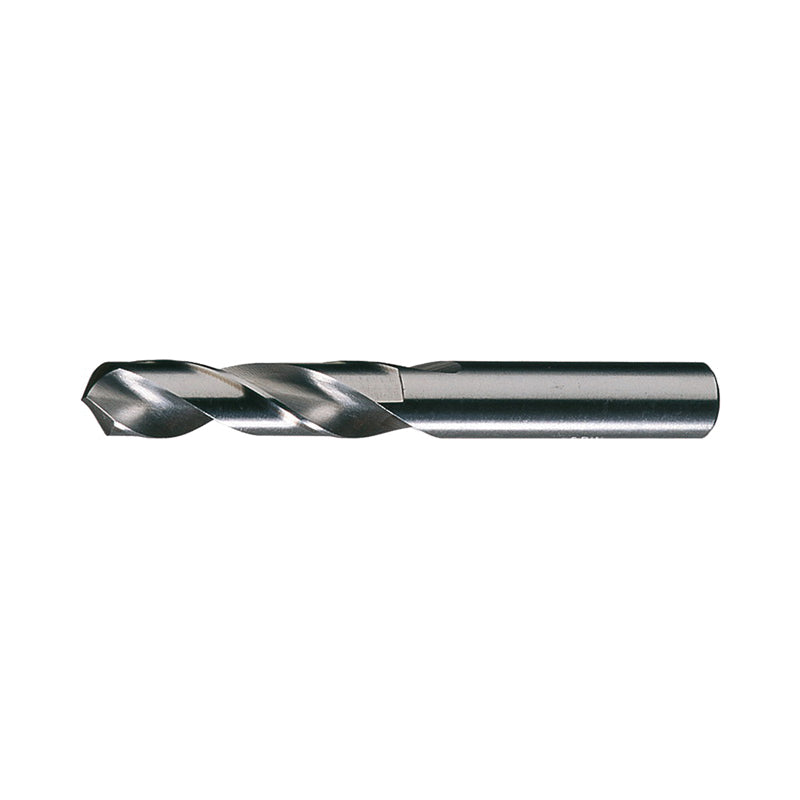

Chicago-Latrobe GREIN-48826CL Chicago-Latrobe 48826 General Purpose Screw Machine Drill 0.413 in Drill - Decimal Inch

Product Description

Chicago-Latrobe is known for its precision tools, and the GREIN-48826CL Screw Machine Drill is a testament to that quality. This general-purpose drill features a diameter of zero point four one three inches and is designed for use across various materials, including alloy steel, carbon steel, cast iron, and non-ferrous materials. The drill has an overall length of three and three-eighths inches and a cutting depth of three times the diameter.

• General-purpose design suitable for many materials
• Right hand cutting direction with two flutes
• High-speed steel construction for durability

Product Highlights

Ideal for maintaining precision drilling in tough conditions. The drill's shorter flute ensures less deflection when used with higher feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48826CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 2 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-3/8 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.413 in Dia x 1.375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: Z
• Drill Size - Decimal Inch: 0.413 in
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
