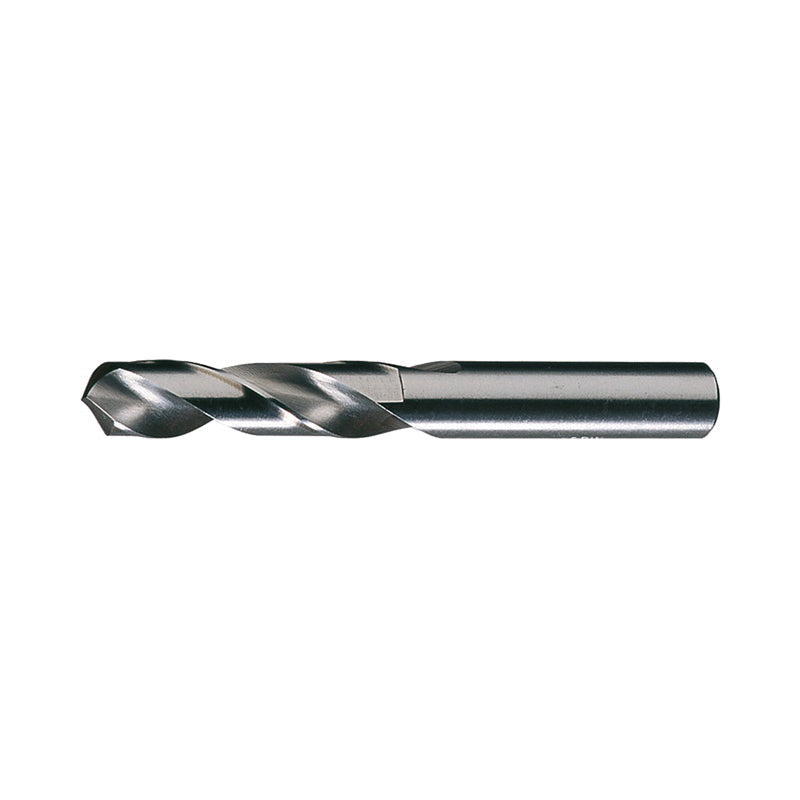

Chicago-Latrobe GREIN-48824CL Chicago-Latrobe 48824 157 General Purpose Screw Machine Drill X Drill - Letter 0.397 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe® GREIN-48824CL is a general-purpose screw machine drill designed for various drilling tasks. This tool is suitable for alloy steel, carbon steel, cast iron, and non-ferrous materials. It features a drill diameter of zero point three nine seven inches and a length of three and five sixteenths inches.

• Two flutes and a right-hand cutting direction.
• HSS material provides durability and reliability.
• Radial point type ensures efficient drilling.

Product Highlights

This drill offers excellent rigidity, making it ideal for heavy feed rates and portable drilling applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe®
• Manufacturer Name: Greenfield Industries

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial

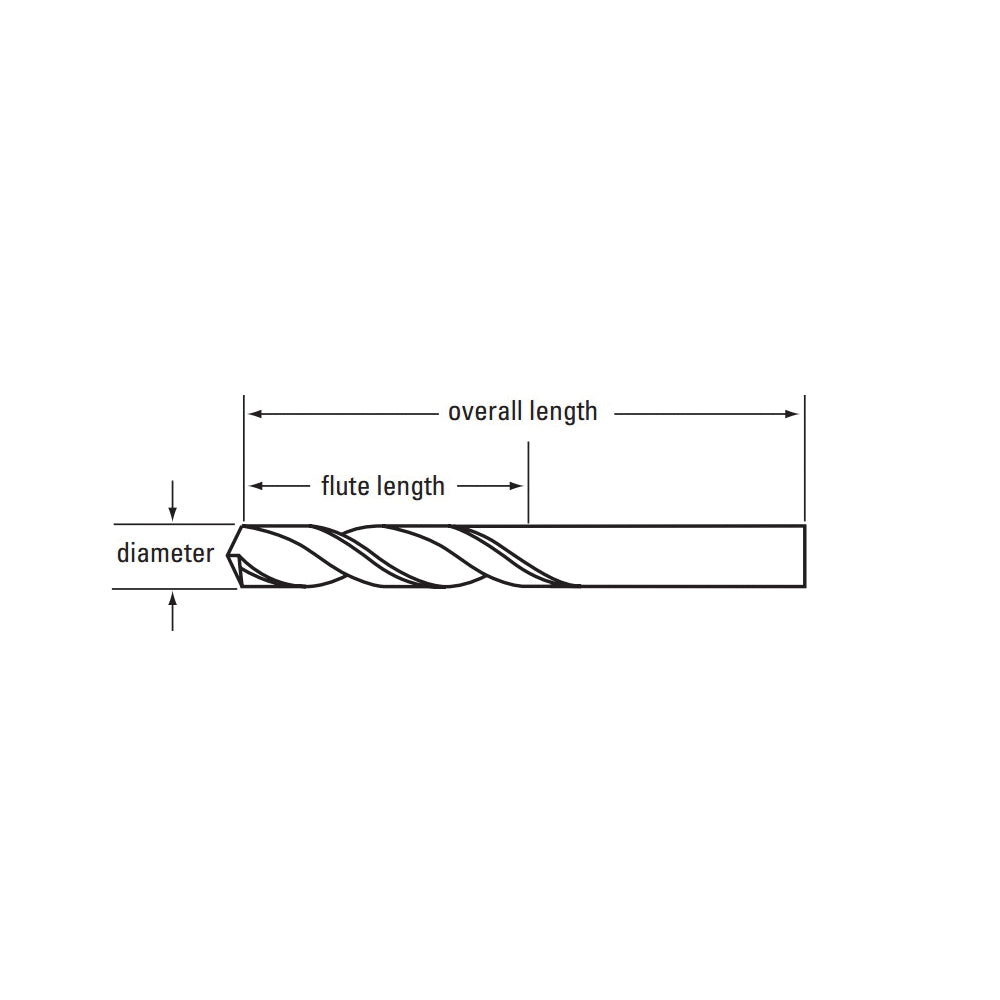

• Flute Length: 1-15/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-5/16 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.397 in Dia x 1.375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: X
• Drill Size - Decimal Inch: 0.397 in
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
