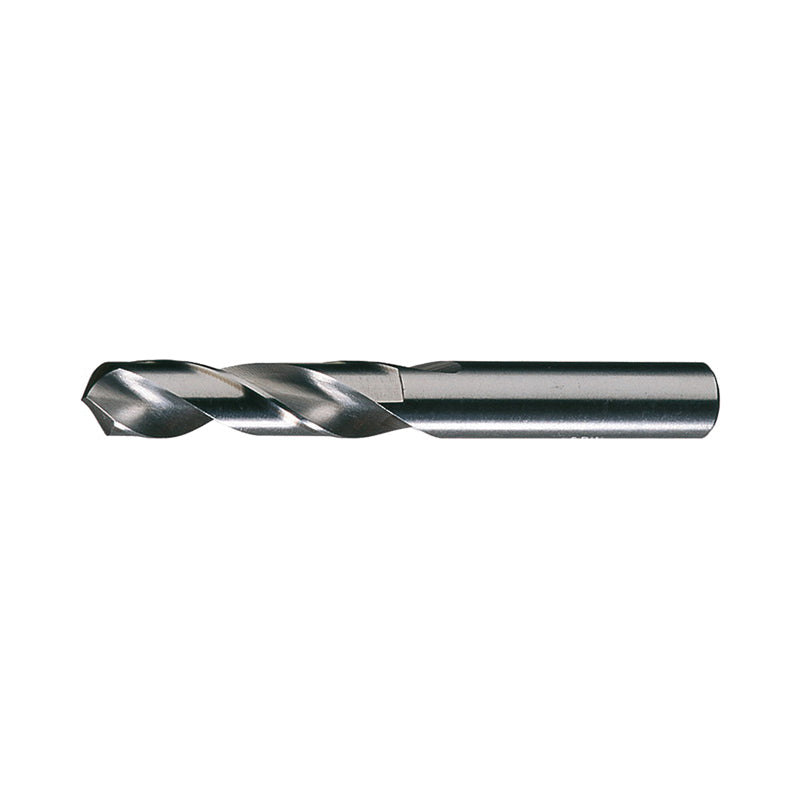

Chicago-Latrobe GREIN-48823CL 157 General Purpose Screw Machine Drill W Drill - Letter 0.386 in

Product Description

The Chicago-Latrobe GREIN-48823CL is a general purpose screw machine drill designed for versatile applications. It features a drill diameter of zero point three eight six inches in decimal inch measurement, suitable for various materials.

• Overall length of three and one-fourth inches.
• Right hand cutting direction with a radial point type.
• Constructed with HSS cutting edge material for durability.

Product Highlights

This drill is optimized for use in alloy steel, carbon steel, cast iron, and non-ferrous materials, making it ideal for a wide range of drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48823CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-7/8 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-1/4 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.386 in Dia x 1.375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: W
• Drill Size - Decimal Inch: 0.386 in
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
