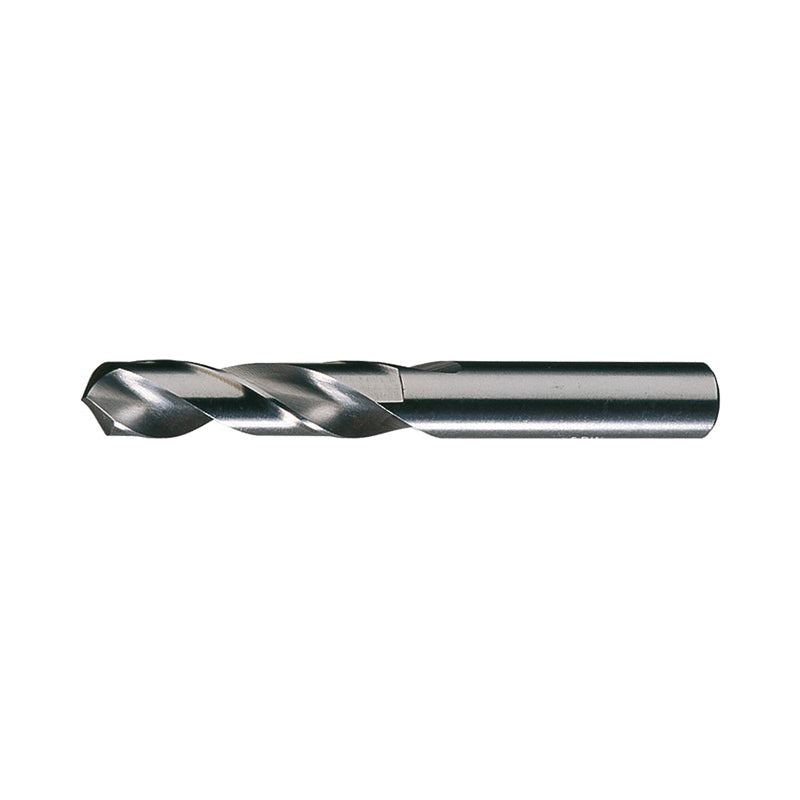

Chicago-Latrobe GREIN-48822CL 157 General Purpose Screw Machine Drill V Drill - Letter 0.377 in

Product Description

The Chicago-Latrobe GREIN-48822CL is a general-purpose screw machine drill designed for a range of applications. With a drill diameter of zero point three seven seven inches and a bright HSS cutting edge, this drill is suitable for drilling in alloy steel, carbon steel, cast iron, and non-ferrous materials.

• Suitable for a variety of materials including alloy and carbon steel
• Features a right hand cutting direction for ease of use
• Designed to minimize deflection with its compact and rigid design

Product Highlights

This drill has a three and one-quarter inch overall length and a cutting depth of three times the diameter. It contains two flutes which provide efficient cutting and chip removal.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48822CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-7/8 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-1/4 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.377 in Dia x 1.375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: V
• Drill Size - Decimal Inch: 0.377 in
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
