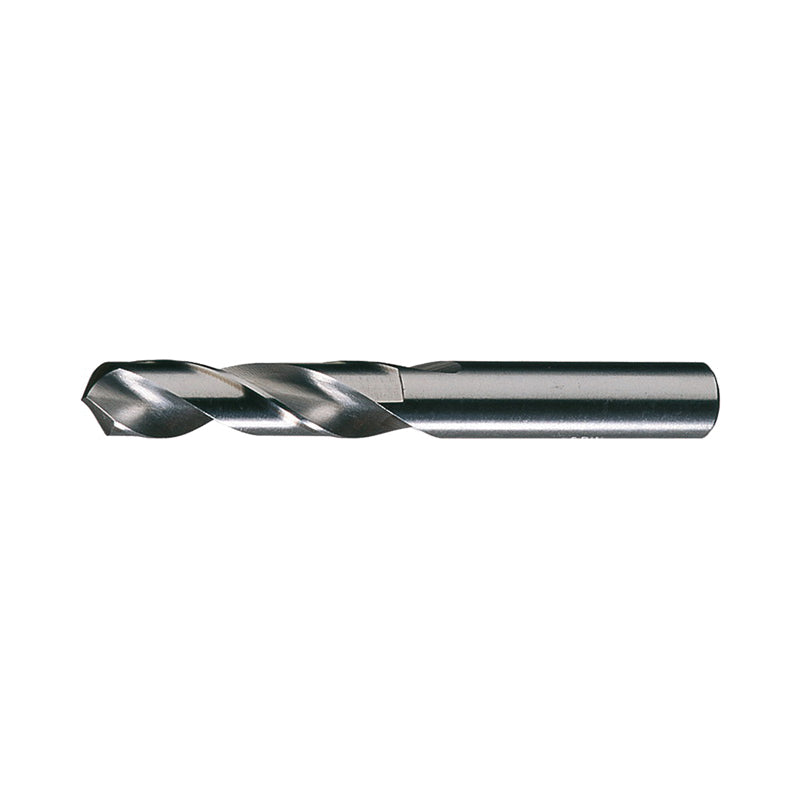

Chicago-Latrobe GREIN-48818CL 157 General Purpose Screw Machine Drill R Drill - Letter 0.339 in

Product Description

Chicago-Latrobe Screw Machine Drill, MPN GREIN-48818CL, is a general-purpose drill designed for versatile applications. This drill fits a wide range of materials, making it suitable for various drilling tasks. It features an overall length of three inches and a right-hand cutting direction, ensuring ease of use and efficiency.

• Cutting depth ratio of 3XD
• Two flutes with a right spiral design
• Constructed from high-speed steel (HSS) for durability

Product Highlights

This drill's shorter flute and overall length enhance rigidity, minimizing deflection under heavy feed rates. It is especially effective for portable drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48818CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-11/16 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3 inches
• Point Angle: 118 degrees
• Point Type: Radial
• Series: 157
• Shank Size: 0.339 inches Diameter x 1.3125 inches Length
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: R
• Drill Size - Decimal Inch: 0.339 inches
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
