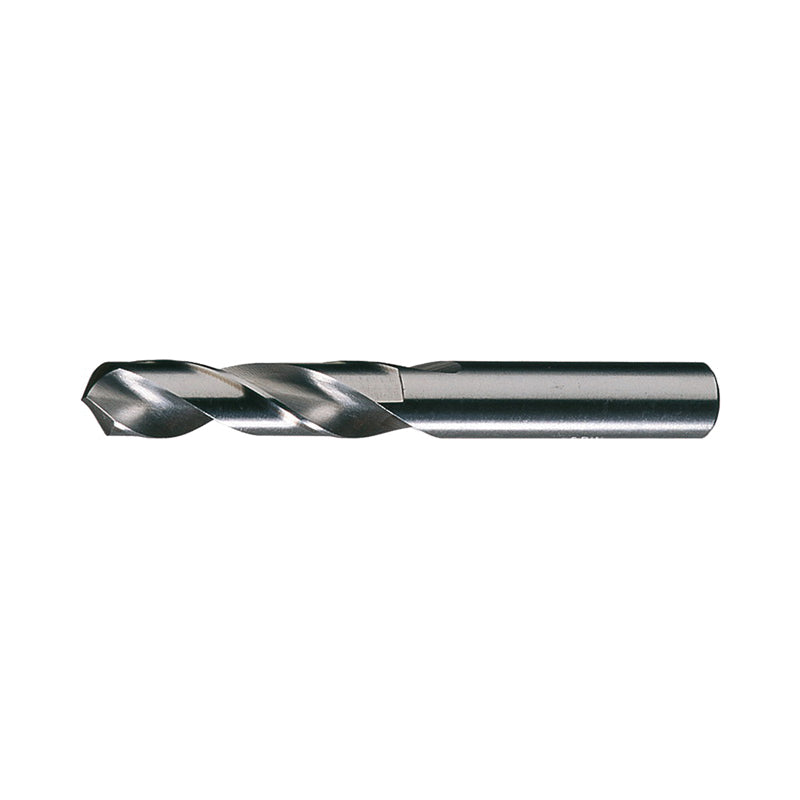

Chicago-Latrobe GREIN-48815CL 48815 General Purpose Screw Machine Drill O Drill - Letter 0.316 in

Product Description

The Chicago-Latrobe GREIN-48815CL is a general purpose screw machine drill. This drill is part of the Series 157 and features a dimension of zero point three one six inches. The overall length is two and fifteen-sixteenths inches. It is designed with two flutes and features a right hand cutting direction. The drill is made with high-speed steel and is suitable for use on a variety of materials.

• General purpose geometry for versatile drilling.
• Shorter flute length enhances rigidity.
• HSS cutting edge ensures durability.

Product Highlights

This drill is effective for drilling in alloy steel, carbon steel, cast iron, and non-ferrous materials.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48815CL

Technical Specifications

• Overall Length: 2-15/16 in
• Cutting Depth: 3XD
• Flute Length: 1-11/16 in
• Shank Size: 0.316 in Dia x 1.25 in L
• Material: HSS
• Finish: Bright
• Point Angle: 118 deg
• Drill Size - Letter: O
