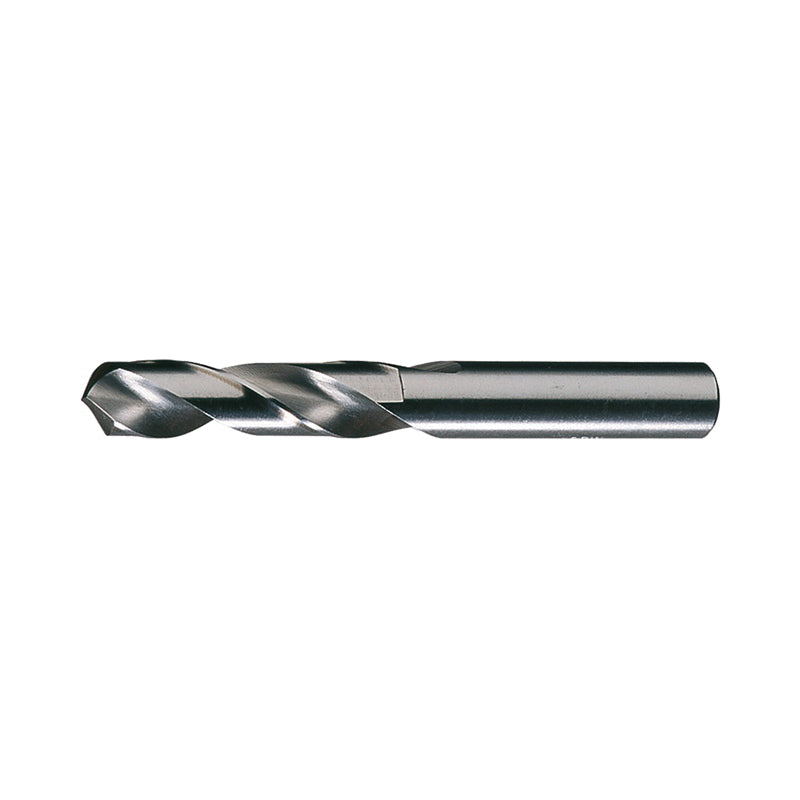

Chicago-Latrobe GREIN-48814CL Chicago-Latrobe 48814 157 General Purpose Screw Machine Drill N 0.302 in

Product Description

The Chicago-Latrobe GREIN-48814CL is a general purpose screw machine drill. It measures 0.302 inches in diameter and is designed for a variety of drilling tasks. This drill is part of the 157 series and features a right hand cutting direction. It is optimized for use on alloy steel, carbon steel, cast iron, and non-ferrous materials.

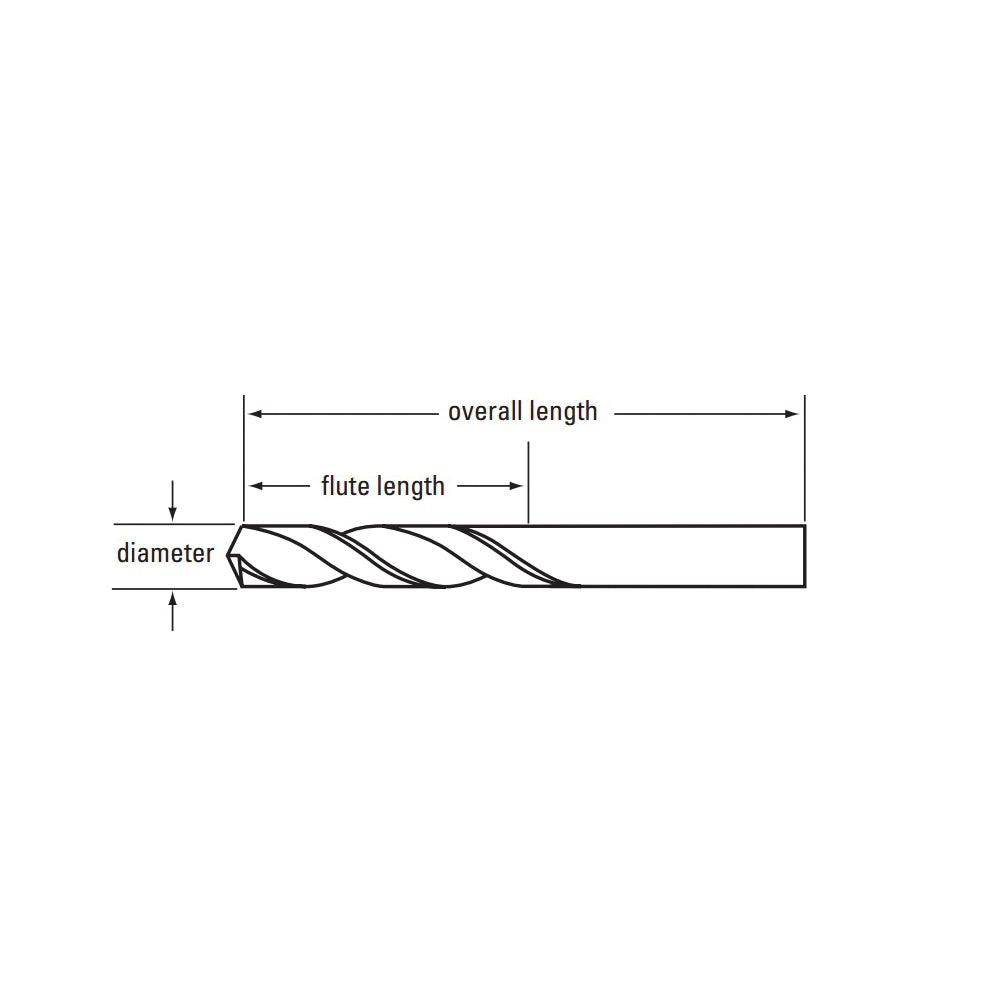

• Drill diameter of 0.302 inches
• Overall length of 2-13/16 inches
• Two flutes with a right spiral design

Product Highlights

This drill offers general purpose geometry that allows for versatility in different operating conditions. The shorter flute and overall length enhance rigidity, minimizing deflection during heavy feed rates. It is also suitable for portable drilling applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48814CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-5/8 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-13/16 inches
• Point Angle: 118 degrees
• Point Type: Radial
• Series: 157
• Shank Size: 0.302 inches diameter x 1.1875 inches length
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: N
• Drill Size - Decimal Inch: 0.302 inches
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
