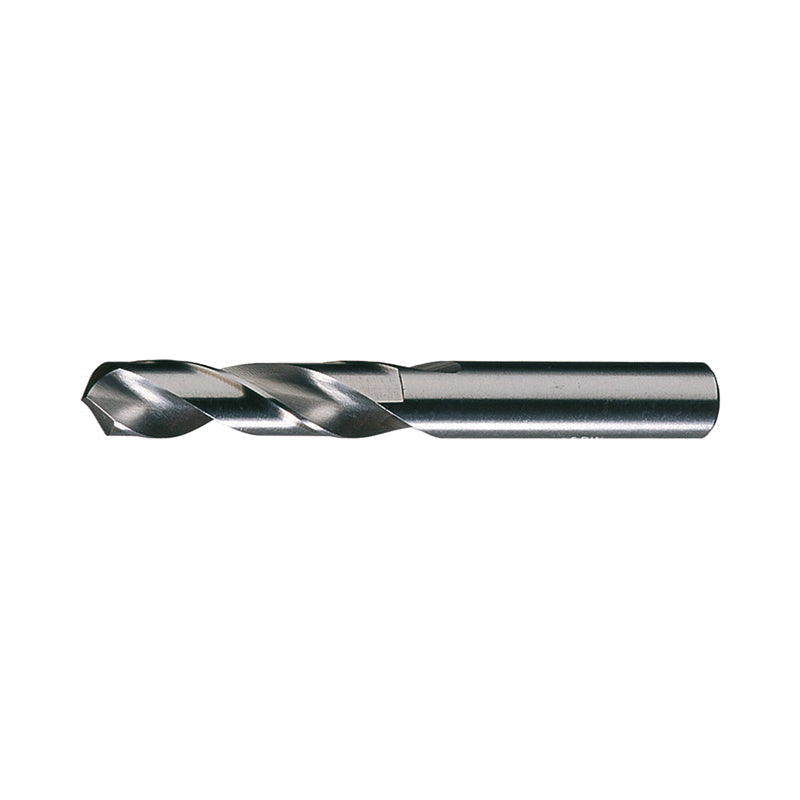

Chicago-Latrobe GREIN-48813CL 48813 M Drill - Letter 0.295 in

Product Description

The Chicago-Latrobe GREIN-48813CL is a general-purpose screw machine drill suitable for various applications. This drill features an M drill size and a diameter of zero point two nine five inches, offering versatility and efficiency in drilling tasks.

• Overall length of two and three-quarter inches
• Right hand cutting direction with a radial point
• HSS cutting edge for durability

Product Highlights

The drill's short length enhances rigidity, making it effective in portable applications and minimizing deflection during operation.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48813CL

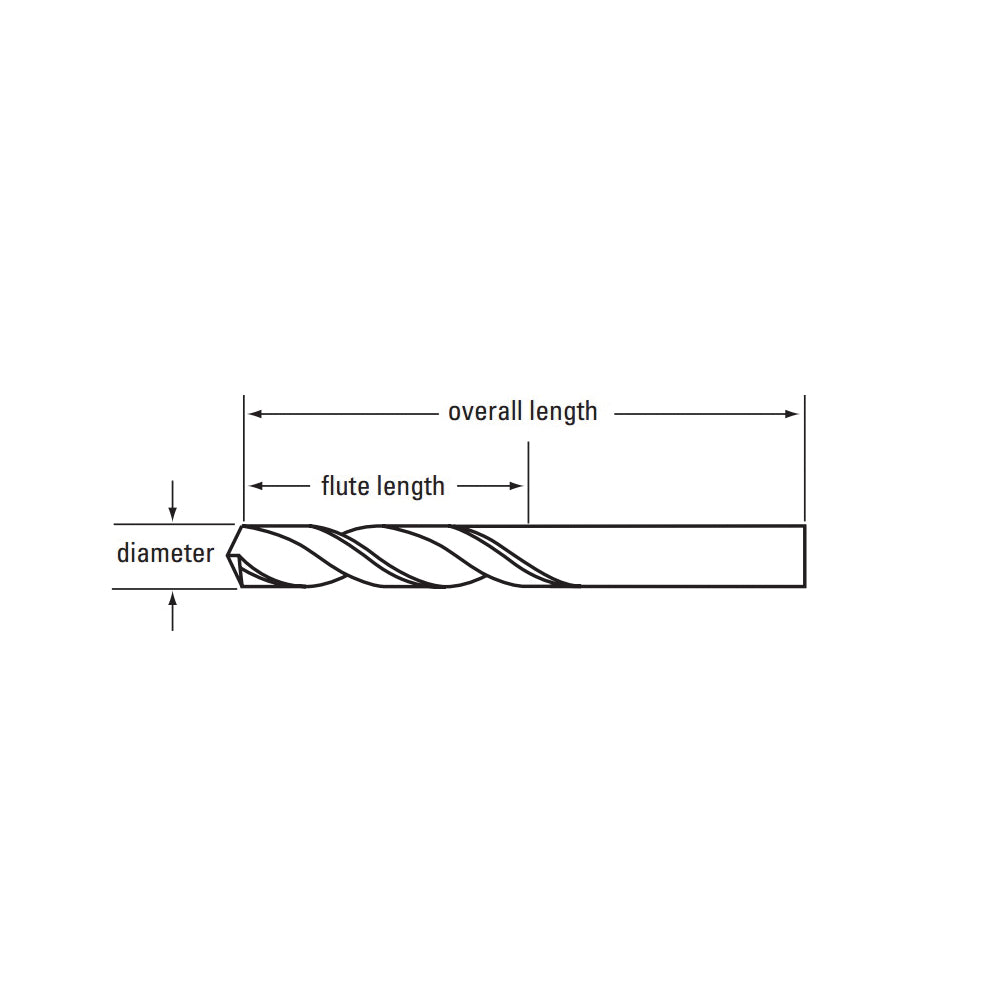

Technical Specifications

• Drill Size - Letter: M
• Drill Size - Decimal Inch: 0.295 in
• Overall Length: 2-3/4 in
• Cutting Depth: 3XD
• Flute Length: 1-9/16 in
• Number of Flutes: 2
• Flute Type: Right Spiral
• Cutting Direction: Right Hand
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
