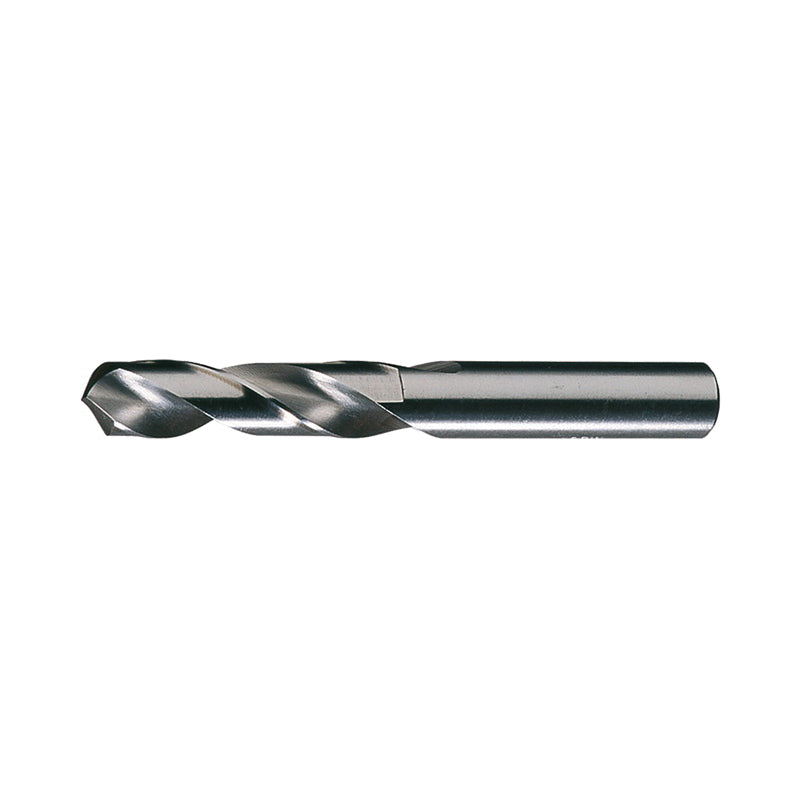

Chicago-Latrobe GREIN-48812CL General Purpose Screw Machine Drill L Drill 0.29 in

Product Description

The Chicago-Latrobe GREIN-48812CL is a general purpose screw machine drill suitable for various materials. It features a drill size of 0.29 inches, an overall length of two and three-fourths inches, and uses HSS material. This drill is ideal for tasks in alloy steel, carbon steel, cast iron, and non-ferrous materials.

• General purpose design for versatile drilling
• Short flute length for enhanced rigidity
• Compatible with multiple materials including alloy and carbon steels

Product Highlights

Designed for precision drilling, this drill provides a reliable performance across various applications while minimizing deflection under heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48812CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-9/16 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-3/4 inches
• Point Angle: 118 degrees
• Point Type: Radial
• Series: 157
• Shank Size: 0.29 inches diameter x 1.1875 inches length
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: L
• Drill Size - Decimal Inch: 0.29 inches
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
