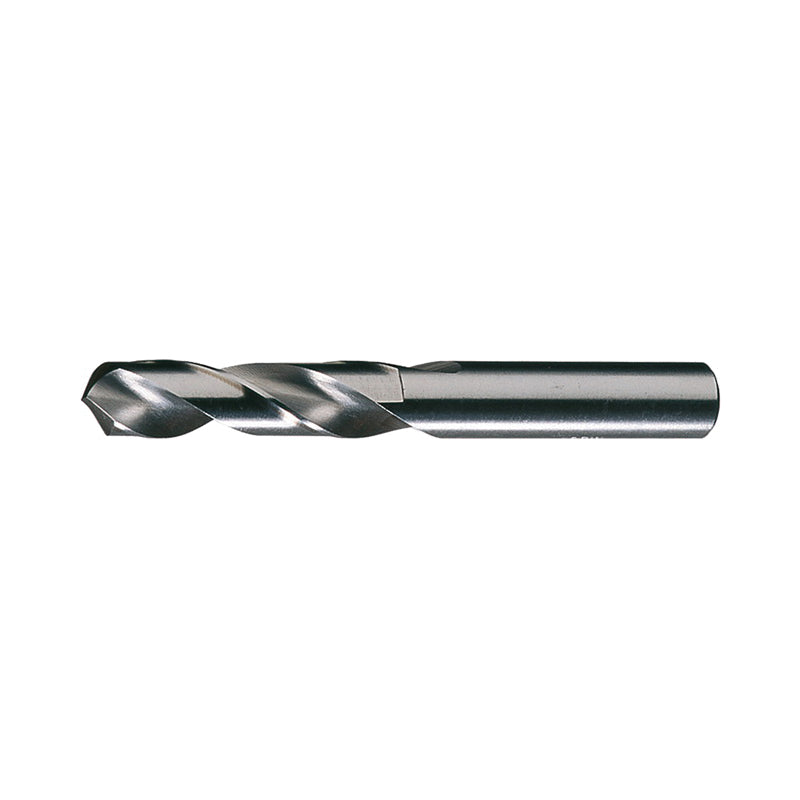

Chicago-Latrobe GREIN-48756CL Screw Machine Drill 157 #56 Drill - Wire 0.0465 in

Product Description

The Chicago-Latrobe GREIN-48756CL Screw Machine Drill is designed for general-purpose use. This drill features a #56 size with a diameter of 0.0465 inches and a bright surface finish. It has a total length of one and three-eighths inches and a cutting depth of three times the diameter. The drill has two flutes with a right spiral design to ensure efficient cutting.

• General purpose drill for various materials.
• 1-3/8 inch overall length enhances control.
• Suitable for alloy steel, carbon steel, and cast iron.

Product Highlights

This drill is ideal for use in various applications, offering precision and strength in demanding tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48756CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial

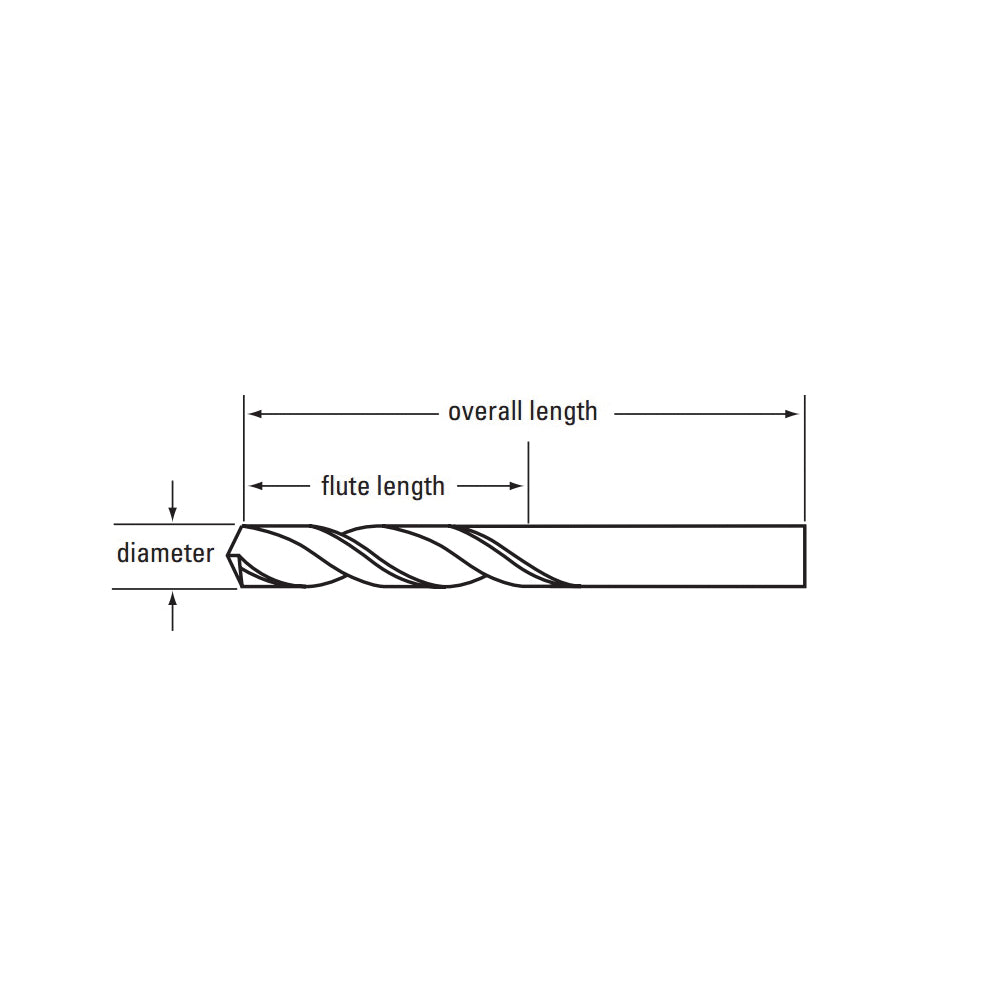

• Flute Length: 0.5 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1.375 inches
• Point Angle: 118 degrees
• Point Type: Radial
• Series: 157
• Shank Size: 0.0465 inches diameter x 0.875 inches length
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Wire: #56
• Drill Size - Decimal Inch: 0.0465 inches
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
