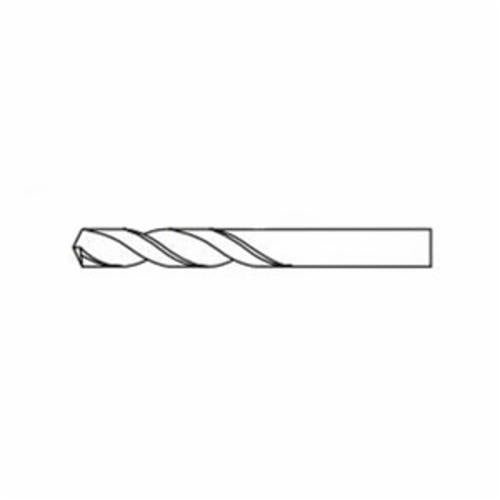

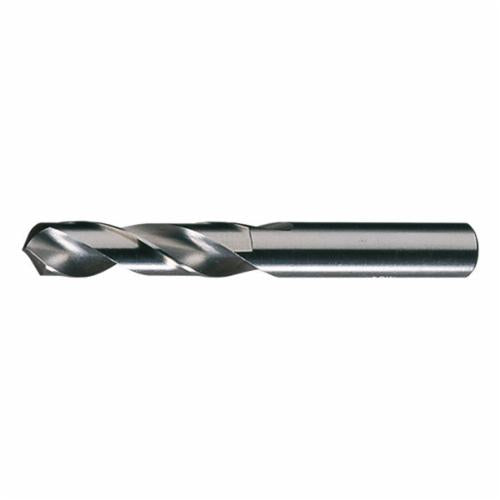

Chicago-Latrobe GREIN-48755CL 48755 157 General Purpose Screw Machine Drill #55 Drill - Wire

Product Description

The Chicago-Latrobe GREIN-48755CL is a general-purpose screw machine drill designed for versatility. This drill is part of the Series 157 with a #55 drill size, suitable for a range of materials including alloy steel, carbon steel, cast iron, and non-ferrous materials.

• Drill diameter measurement is set at 0.052 inches.
• Features a right hand cutting direction and a radial point type.
• Offers two flutes for efficient drilling.

Product Highlights

This drill is well-suited for various drilling applications where precision is essential. Its robust design and dimensions make it ideal for portable and stationary use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48755CL

Technical Specifications

• Cutting Depth: 3XD
• Overall Length: 1-5/8 inches
• Flute Length: 5/8 inches
• Drill Size - Wire: #55
• Drill Size - Decimal Inch: 0.052 inches
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
