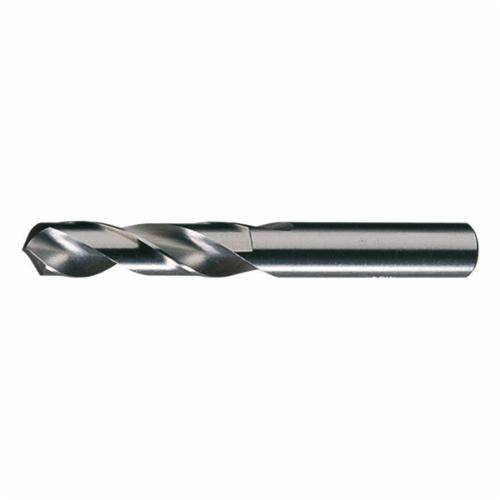

Chicago-Latrobe GREIN-48740CL Chicago-Latrobe Screw Machine Drill 157 #40 Drill - Wire 48740

Product Description

The Chicago-Latrobe screw machine drill, MPN GREIN-48740CL, is designed for general-purpose drilling. It features a drill diameter of #40, which is equivalent to 0.098 inches in decimal inches. This drill is made from high-speed steel (HSS) and has a bright finish for enhanced durability.

• Overall length of one and thirteen-sixteenths inches.
• Right-hand cutting direction with a radial point design.
• Two flutes for efficient chip removal.

Product Highlights

This drill bit is suitable for drilling through various materials, including alloy steel, carbon steel, cast iron, and non-ferrous materials. The drill has a cutting depth of three times the diameter for enhanced performance.

Product Information

Standard Information

• MFG Name: Greenfield Industries
• Type: General Purpose

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 13/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-13/16 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.098 in Dia x 1 in L
• Shank Type: Straight
• Drill Size - Wire: #40
• Drill Size - Decimal Inch: 0.098 in
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
