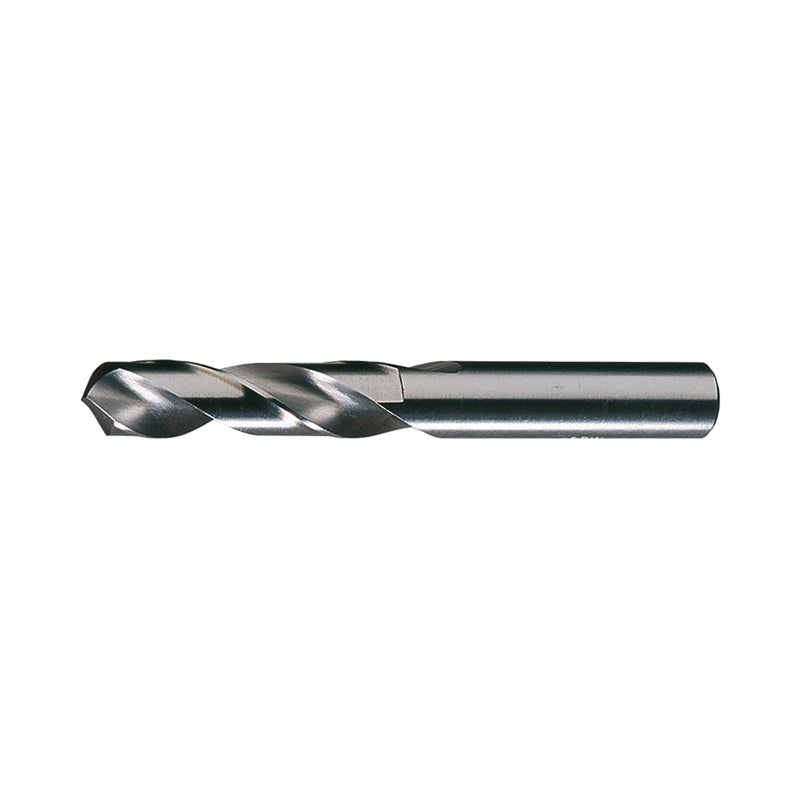

Chicago-Latrobe GREIN-48733CL 48733 157 General Purpose Screw Machine Drill, #33 Drill - Wire, 0.113 in Drill - Decimal Inch

Product Description

Chicago-Latrobe GREIN-48733CL is a general-purpose screw machine drill suitable for various applications. It is designed to drill through a variety of materials including alloy steel, carbon steel, cast iron, and non-ferrous materials. The drill has a diameter of zero point one one three inches and a length of one and seven eighths inches, making it ideal for different drilling tasks.

• General purpose geometry for diverse operating conditions.
• Shorter flute length enhances rigidity and minimizes deflection.
• Designed for both stationary and portable drilling applications.

Product Highlights

Features two flutes for efficient cutting and is made from HSS. The drill has a right hand cutting direction with a bright finish for increased durability.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48733CL

Technical Specifications

• Type: General Purpose
• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS

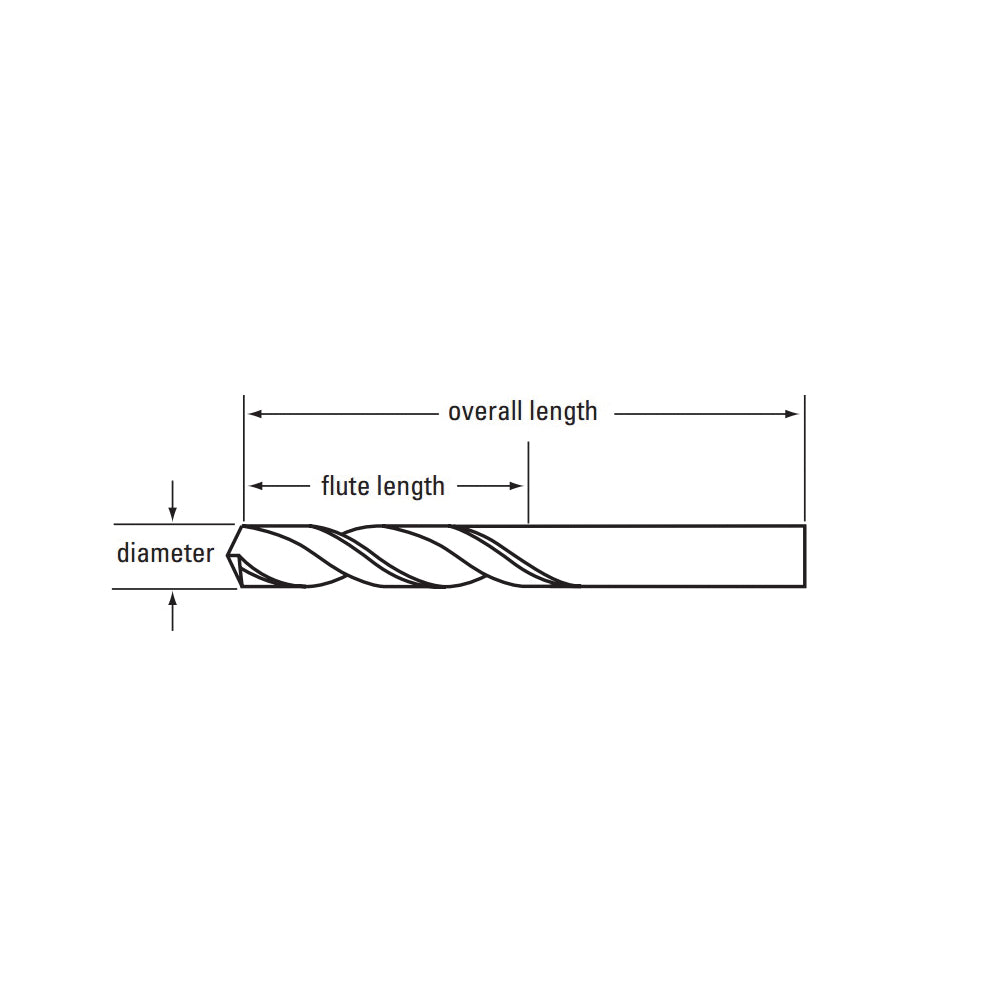

• Overall Length: 1-7/8 in
• Shank Size: 0.113 in Dia x 1 in L
• Point Angle: 118 deg
• Point Type: Radial
• Flute Length: 7/8 in
• Number of Flutes: 2
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
