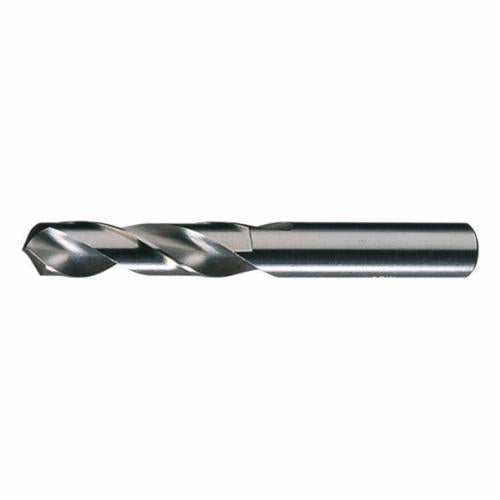

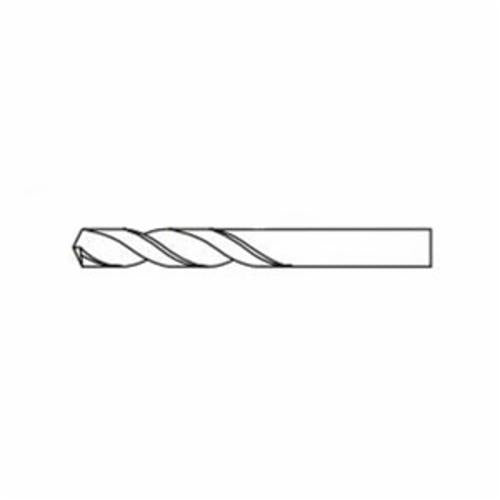

Chicago-Latrobe GREIN-48708CL General Purpose Screw Machine Drill #8 Drill - Wire 0.199 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-48708CL is a general-purpose screw machine drill designed for various applications. This drill features a #8 wire size and a decimal inch measurement of 0.199. The overall length is two and one-quarter inches, providing a compact yet effective tool for various drilling tasks.

• General purpose geometry for versatile drilling.
• Short flute and overall length for enhanced rigidity.
• Right hand cut and high-speed steel edge.

Product Highlights

This drill is suitable for use with alloy steel, carbon steel, cast iron, and non-ferrous materials. Its unique design allows for use in heavy feed rates without deflection, making it ideal for portable drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Manufacturing Name: Greenfield Industries
• Drill Size - Wire: #8
• Drill Size - Decimal Inch: 0.199 in
• Type: General Purpose

Technical Specifications

• Cutting Depth: 3XD
• Flute Length: 1-3/16 in
• Number of Flutes: 2
• Overall Length: 2-1/4 in
• Point Angle: 118 deg
• Shank Size: 0.199 in Dia x 1.0625 in L
• Cutting Direction: Right Hand
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, and Non-Ferrous Materials
