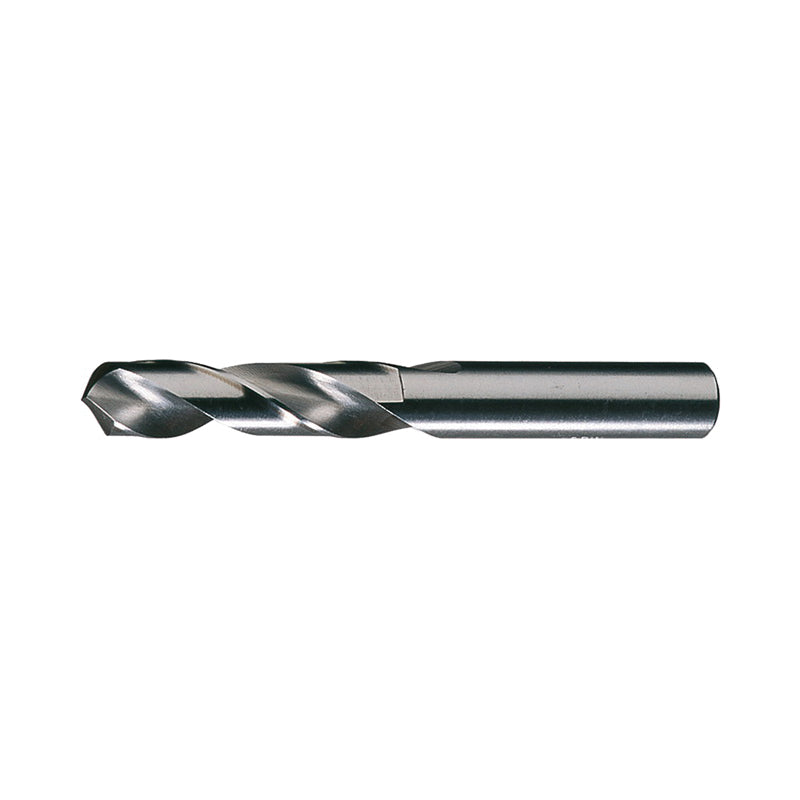

Chicago-Latrobe GREIN-48705CL General Purpose Screw Machine Drill #5 Drill - Wire 0.2055 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-48705CL is a general-purpose screw machine drill designed for a wide range of applications. The drill features a #5 wire size with a diameter of zero point two zero five five inches, making it suitable for various material types. Its overall length is two and three eighths inches with a cutting depth of three times diameter.

• Two flutes with a right spiral design for efficient chip removal.
• Manufactured from high-speed steel (HSS) for durability.
• Designed for drilling in alloy steel, carbon steel, cast iron, and non-ferrous materials.

Product Highlights

This drill is ideal for portable drilling tasks, offering high rigidity and performance in demanding conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Series: 157

Technical Specifications

• Cutting Depth: 3XD
• Overall Length: 2-3/8 in
• Flute Length: 1-1/4 in
• Drill Diameter Measurement System: Imperial
• Point Angle: 118 deg
• Flute Type: Right Spiral
• Number of Flutes: 2
• Point Type: Radial
• Shank Type: Straight
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
• Drill Size - Wire: #5
• Drill Size - Decimal Inch: 0.2055 in
