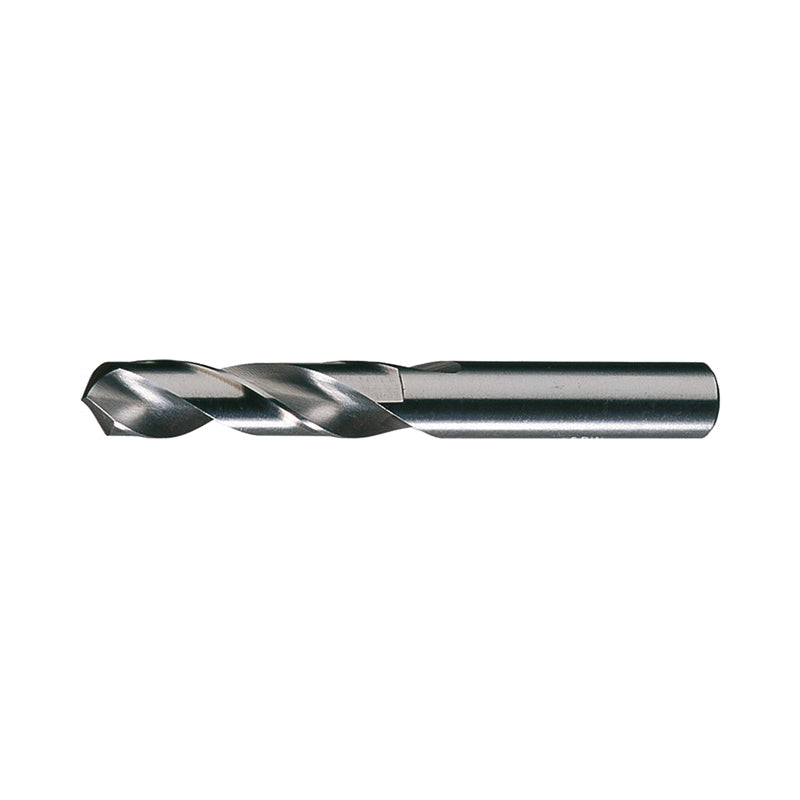

Chicago-Latrobe GREIN-48703CL General Purpose Screw Machine Drill #3 Drill - Wire 0.213 in

Product Description

The Chicago-Latrobe GREIN-48703CL is a general-purpose screw machine drill designed for versatile applications. This drill features a wire size of #3 and a decimal size of 0.213 inches. It is made from high-speed steel (HSS) for enhanced durability and comes with a bright finish for improved performance.

• Overall length of two and three-eighths inches
• Precision cutting with a right-hand cutting direction
• Suitable for use in alloy steel, carbon steel, cast iron, and non-ferrous materials

Product Highlights

The drill's geometry allows it to perform effectively in various operating conditions. The shorter flute and overall length provide added rigidity, reducing deflection during heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Type: General Purpose

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial

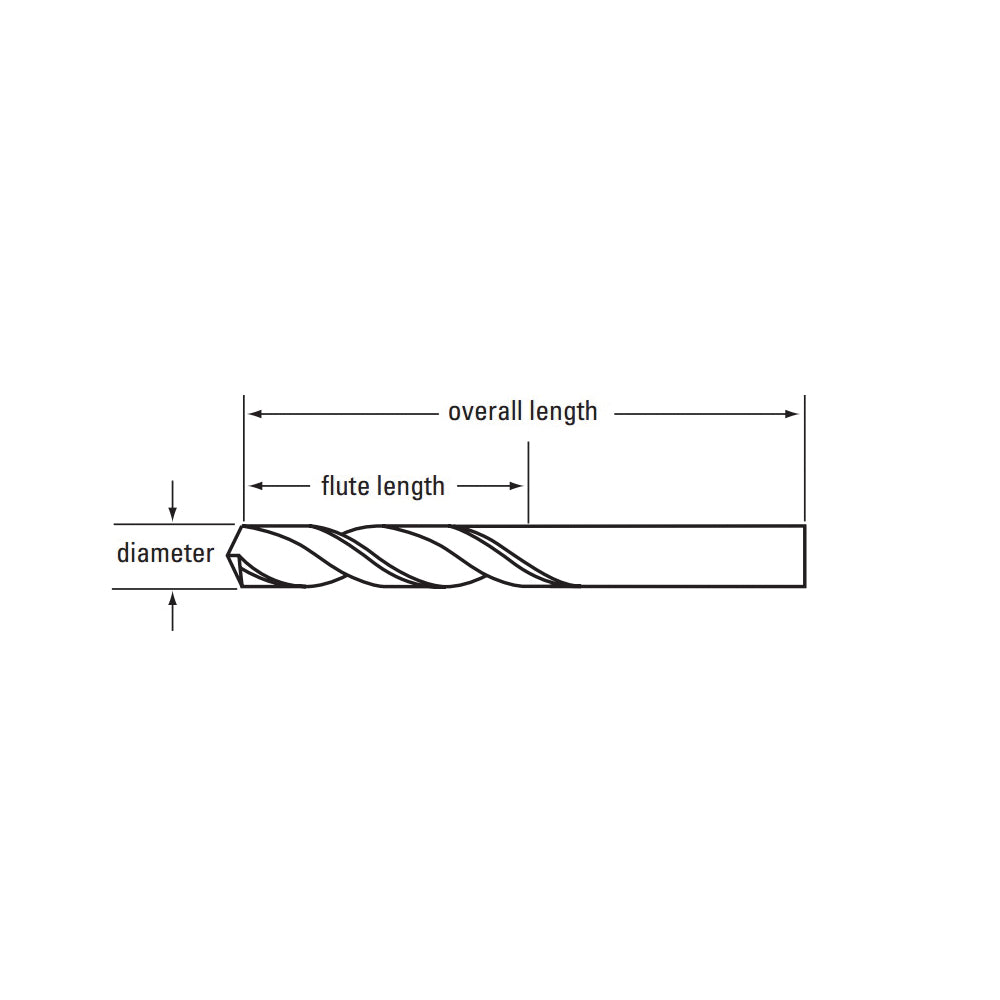

• Flute Length: 1-1/4 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-3/8 inches
• Point Angle: 118 degrees
• Point Type: Radial
• Series: 157
• Shank Size: 0.213 inches diameter x 1.125 inches length
• Shank Type: Straight
• Drill Size - Wire: #3
• Drill Size - Decimal Inch: 0.213 inches
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Non-Ferrous Materials
