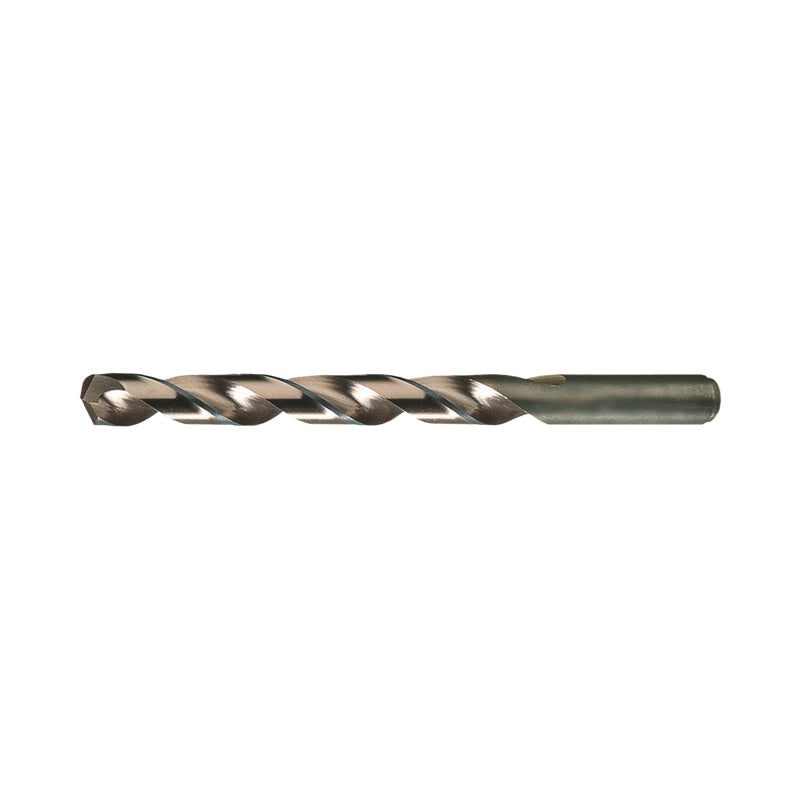

Chicago-Latrobe GREIN-46790CL 550 Heavy Duty Jobber Length Drill Bit T Drill - Letter 0.358 in

Product Description

Chicago-Latrobe Jobber Length Drill Bit with MPN GREIN-46790CL is designed for heavy-duty applications. This drill bit features a diameter of zero point three five eight inches and is specifically made for drilling into tough materials such as alloy steel and stainless steel. With a length of four and seven eighths inches and a cutting depth of five times the diameter, it can handle demanding tasks efficiently.

• Suitable for tough high-tensile materials
• Features a self-centering 135-degree split point
• Made from M42 HSS-Co 8% for better durability

Product Highlights

This drill bit is ideal for drilling in extreme conditions where strength is paramount.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46790CL

Technical Specifications

• Applicable Materials: Alloy Steel, Stainless Steel, Titanium, Tool Steel
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial

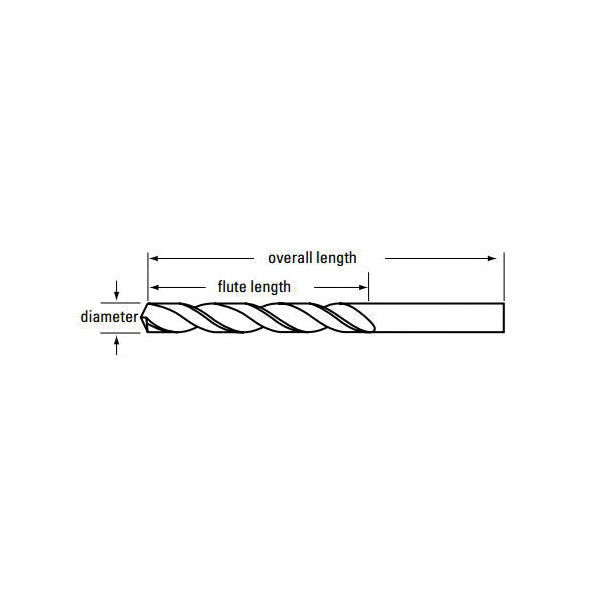

• Flute Length: 3-1/2 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 4-7/8 inches
• Point Type: Split
• Point Angle: 135 degrees
• Shank Size: 0.358 inches diameter x 1.375 inches length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Letter: T
• Drill Size - Decimal Inch: 0.358 inches
• Finish: Straw Oxide
• Through Coolant: No
