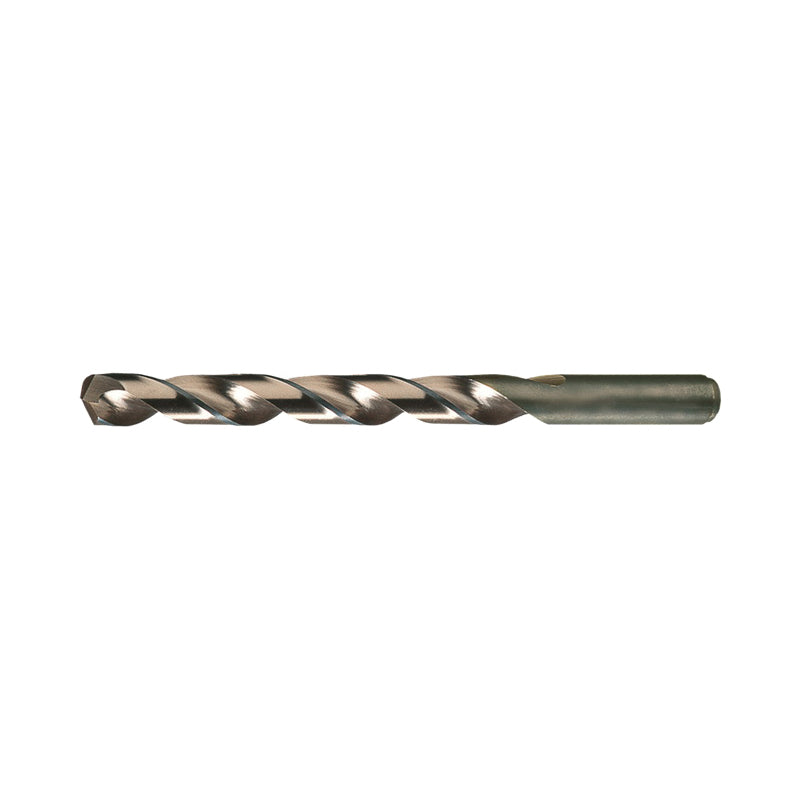

Chicago-Latrobe GREIN-46782CL Jobber Length Drill Bit Heavy Duty 0.29 Inch

Product Description

The Chicago-Latrobe GREIN-46782CL Jobber Length Drill Bit is designed for heavy-duty applications. It features a diameter of zero point twenty-nine inches and an overall length of four and one-fourth inches. This drill bit is suitable for drilling in tough materials such as alloy steel, stainless steel, titanium, and tool steel.

• Made from M42 HSS-Co eight percent for durability
• 135-degree point for reduced thrust and easier penetration
• Right spiral flute design

Product Highlights

This drill bit excels in high tensile and work-hardening materials, making it ideal for extreme operating conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46782CL

Technical Specifications

• Type: Heavy Duty
• Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial
• Drill Size - Letter: L
• Drill Size - Decimal Inch: 0.29 in

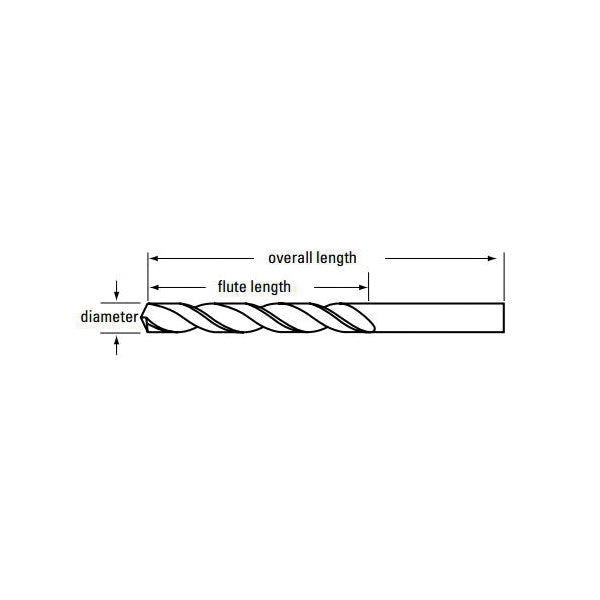

• Overall Length: 4-1/4 in
• Flute Length: 2-15/16 in
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Point Type: Split
• Point Angle: 135 deg
• Cutting Edge Material: M42 HSS-Co 8%
• Finish: Straw Oxide
• Cutting Depth: 5XD
• Through Coolant: No
• Applicable Materials: Alloy Steel, Stainless Steel, Titanium and Tool Steel
