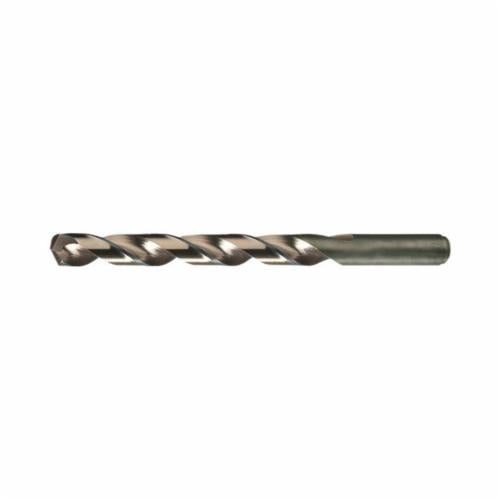

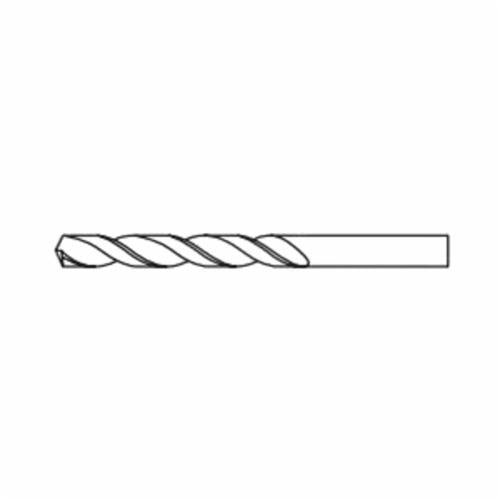

Chicago-Latrobe GREIN-46771CL 550 Heavy Duty Jobber Length Drill Bit A 0.234 in

Product Description

The Chicago-Latrobe GREIN-46771CL is a heavy-duty jobber length drill bit. It is designed for demanding applications where durability matters. The drill has a diameter of 0.234 inches and a point angle of one hundred thirty-five degrees, making it suitable for a variety of materials.

• Constructed from M42 HSS-Co 8% for tough drilling
• 135-degree point for reduced thrust
• Compatible with alloy steel, stainless steel, titanium, and tool steel

Product Highlights

Ideal for drilling into hard materials, this drill bit features a right-hand cutting direction, a split point for easy penetration, and a straight shank type. The drill is applicable in various industrial settings.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46771CL

Technical Specifications

• Drill Type: Heavy Duty
• Overall Length: 3-7/8 inches
• Flute Length: 2-5/8 inches
• Cutting Depth: 5XD
• Number of Flutes: 2
• Shank Size: 0.234 inches by 1.25 inches
• Flute Type: Right Spiral
• Point Type: Split
• Point Angle: 135 degrees
• Cutting Direction: Right Hand
• Drill Size (Letter): A
• Drill Size (Decimal Inch): 0.234 inches
• Applicable Materials: Alloy Steel, Stainless Steel, Titanium, Tool Steel
• Cutting Edge Material: M42 HSS-Co 8%
• Finish: Straw Oxide
• Through Coolant: No
