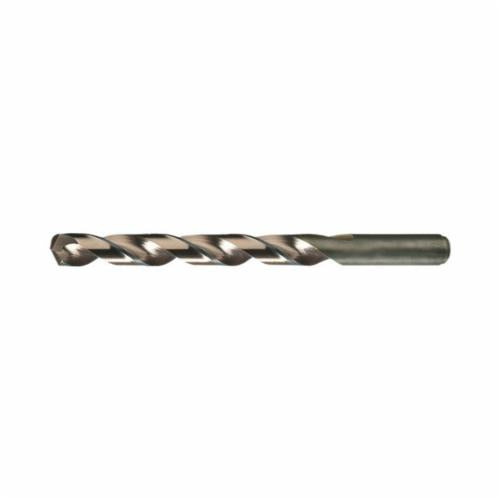

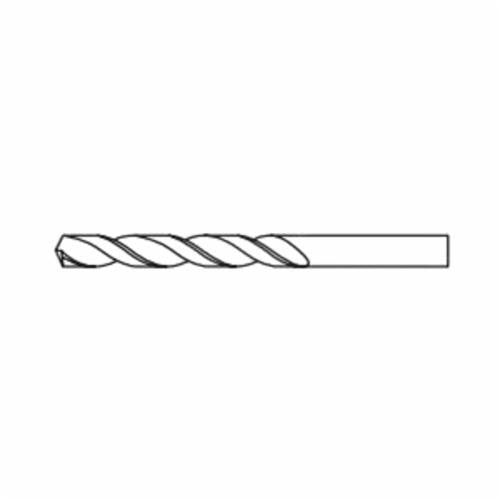

Chicago-Latrobe GREIN-46744CL 550 Heavy Duty Jobber Length Drill Bit, #74 Drill - Wire, 0.0225 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-46744CL is a heavy-duty jobber length drill bit designed for precision drilling in tough materials. This drill bit features a #74 wire size with a diameter of 0.0225 inches and has an overall length of one inch. It incorporates a right-hand cutting direction and a split point design for efficient cutting.

• Heavy duty construction for drilling in tougher materials
• 135 degree P3 split point is self-centering for reduced thrust and easier penetration
• Suitable for use with alloy steel, stainless steel, titanium, and tool steel

Product Highlights

This drill bit is ideal for drilling under extreme operating conditions. It contains two flutes and a right spiral flute design that enhances chip removal and precision.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46744CL

Technical Specifications

• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #74
• Drill Size - Decimal Inch: 0.0225 in
• Point Angle: 135 deg
• Cutting Depth: 5XD
• Overall Length: 1 in
• Number of Flutes: 2
• Flute Type: Right Spiral
• Shank Size: 0.0225 in Dia x 0.75 in L
• Shank Type: Straight
• Cutting Edge Material: M42 HSS-Co 8%
• Finish: Straw Oxide
• Through Coolant: No
• Cutting Direction: Right Hand
• Series: 550
