Chicago-Latrobe GREIN-46743CL Jobber Length Drill Bit 550 Heavy Duty #73 Drill - Wire

Product Description

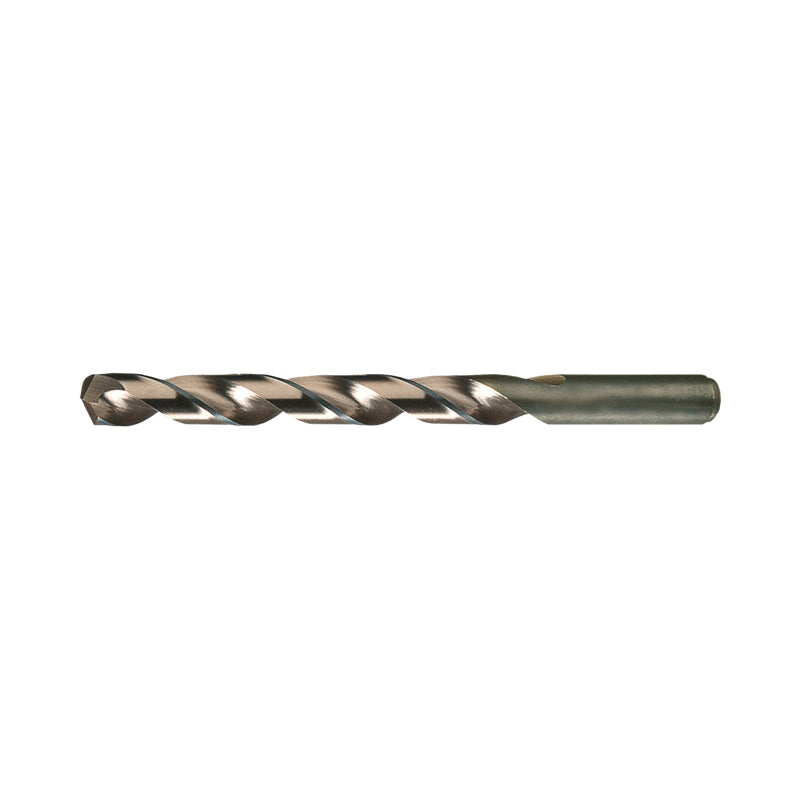

The Chicago-Latrobe GREIN-46743CL is a heavy-duty jobber length drill bit designed for drilling through tough materials. The drill bit features a diameter of 0.024 inches and an overall length of one and one-eighth inches, making it suitable for various drilling tasks. It is made from M42 HSS-Co 8% material with a straw oxide finish to enhance durability.

• 135-degree split point design for self-centering.
• Two-flute construction with right spiral flutes.
• Compatible with alloy steel, stainless steel, titanium, and tool steel.

Product Highlights

This drill bit is ideal for use in high-tensile materials and work hardening applications, ensuring efficient drilling under extreme conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46743CL

Technical Specifications

• Applicable Materials: Alloy Steel, Stainless Steel, Titanium, Tool Steel
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial

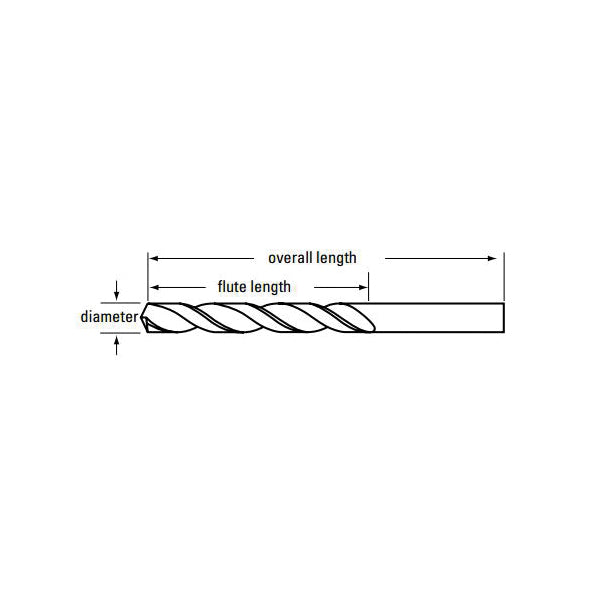

• Flute Length: 5/16 inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-1/8 inch
• Point Type: Split
• Series: 550
• Shank Size: 0.024 inch Dia x 0.8125 inch L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #73
• Drill Size - Decimal Inch: 0.024 inch
• Point Angle: 135 degrees
• Finish: Straw Oxide
• Through Coolant: No
