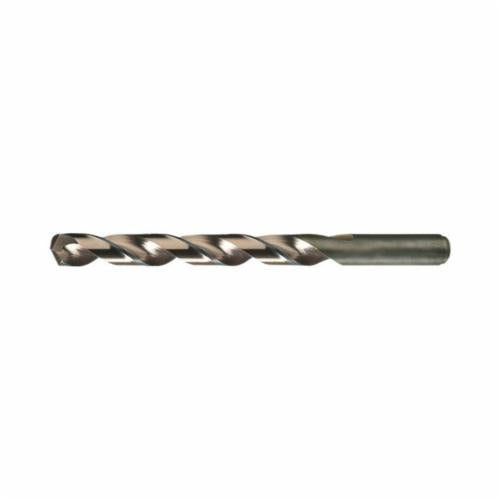

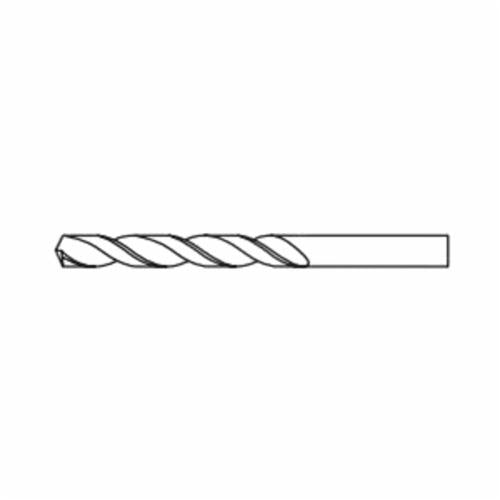

Chicago-Latrobe GREIN-46741CL Heavy Duty Jobber Length Drill Bit 0.026 in

Product Description

The Chicago-Latrobe GREIN-46741CL is a heavy-duty jobber length drill bit designed for high-performance drilling. This drill bit features a diameter of 0.026 inches, perfect for wire drilling applications. With a solid construction, it efficiently handles tough materials.

• Drill size of #71 in wire measurement
• Manufactured from M42 HSS-Co 8% for durability
• 135-degree split point for easy penetration

Product Highlights

This drill bit is suitable for drilling into alloy steel, stainless steel, titanium, and tool steel under extreme conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46741CL

Technical Specifications

• Applicable Materials: Alloy Steel, Stainless Steel, Titanium, Tool Steel
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial
• Flute Length: 3/8 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-1/4 inches
• Point Type: Split
• Series: 550
• Shank Size: 0.026 inches Dia x 0.875 inches L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #71
• Drill Size - Decimal Inch: 0.026 inches
• Point Angle: 135 degrees
• Finish: Straw Oxide
• Through Coolant: No
