Chicago-Latrobe GREIN-46736CL 550 Heavy Duty Jobber Length Drill Bit #66 Drill - Wire 0.033 in Drill - Decimal Inch

Product Description

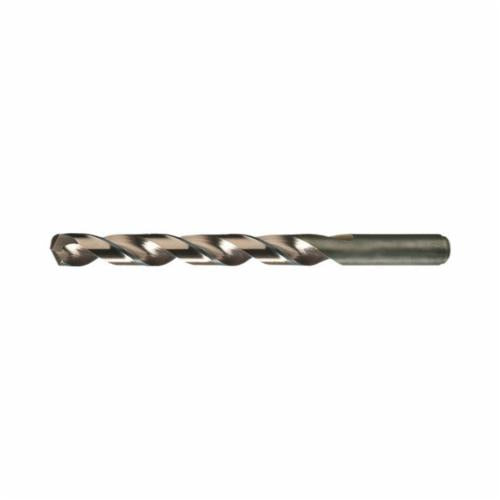

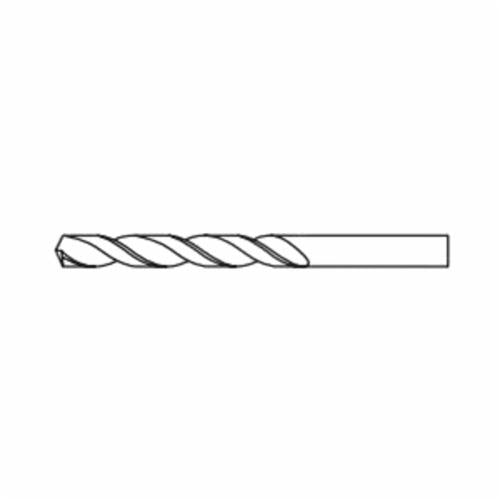

The Chicago-Latrobe GREIN-46736CL is a heavy-duty jobber length drill bit designed for tough drilling tasks. It features a #66 drill size and a diameter of 0.033 inches, making it suitable for a variety of materials. This drill bit is made from M42 HSS-Co with eight percent cobalt, providing better durability and cutting performance.

• Cutting depth of 5XD for deeper drilling.
• 135-degree split point design for easy penetration.
• Compatible with alloy steel, stainless steel, titanium, and tool steel.

Product Highlights

This drill bit excels in drilling applications involving high-tensile and work-hardening materials. Its right-hand cutting direction and right spiral flute design enhance operational efficiency.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46736CL

Technical Specifications

• Overall Length: 1-3/8 in
• Flute Length: 1/2 in
• Number of Flutes: 2
• Drill Diameter Measurement System: Imperial
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Point Angle: 135 deg
• Flute Type: Right Spiral
• Shank Type: Straight
• Shank Size: 0.033 in Dia x 0.875 in L
• Applicable Materials: Alloy Steel, Stainless Steel, Titanium and Tool Steel
• Cutting Edge Material: M42 HSS-Co 8%
• Finish: Straw Oxide
• Through Coolant: No
