Chicago-Latrobe GREIN-46734CL Jobber Length Drill Bit Heavy Duty 550

Product Description

The Chicago-Latrobe GREIN-46734CL is a heavy-duty jobber length drill bit designed for demanding applications. This drill bit features a #64 wire size and a diameter of 0.036 inches. Its overall length is one and a half inches, making it suitable for various drilling tasks.

• Constructed from M42 HSS-Co 8% for durability.
• Features a 135-degree split point for easier penetration.
• Ideal for drilling in alloy steel, stainless steel, titanium, and tool steel.

Product Highlights

This drill bit is suitable for tough materials and heavy-duty use. The right-hand cutting direction and right spiral flute design enhance performance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-46734CL

Technical Specifications

• Type: Heavy Duty
• Applicable Materials: Alloy Steel, Stainless Steel, Titanium and Tool Steel
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial

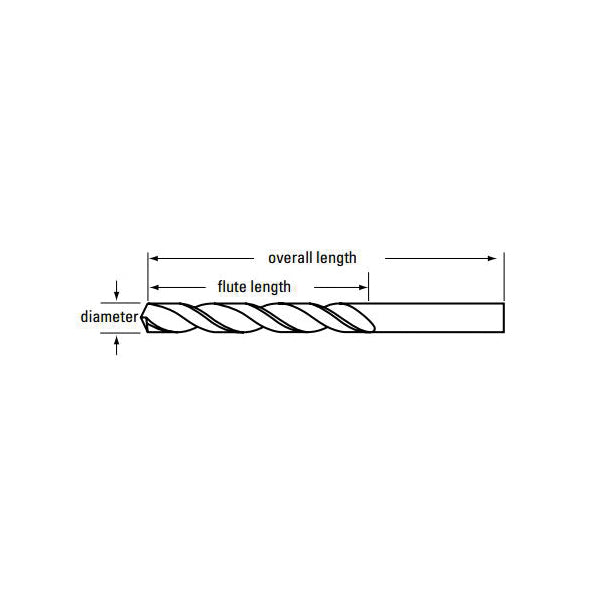

• Flute Length: 5/8 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-1/2 inches
• Point Type: Split
• Drill Size - Wire: #64
• Drill Size - Decimal Inch: 0.036 inches
• Point Angle: 135 degrees
• Finish: Straw Oxide
• Through Coolant: No
