Chicago-Latrobe GREIN-46733 550 Heavy Duty Jobber Length Drill Bit #63 Drill - Wire 0.037 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-46733CL is a heavy duty jobber length drill bit designed for precision drilling in tough materials. This product features a #63 wire size and a drill diameter of zero point zero three seven inches. With an overall length of one and one-half inches, it offers a five-times diameter cutting depth. Made from M42 HSS-Co eight percent material, it provides durability and effectiveness in various applications.

• Constructed for high-tensile and work hardening materials
• 135-degree split point enhances precision and reduces thrust
• Compatible with alloy steel, stainless steel, titanium, and tool steel

Product Highlights

Ideal for extreme operational conditions, this drill bit excels in drilling applications requiring reliability and strength.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Manufacturer Part Number: GREIN-46733CL

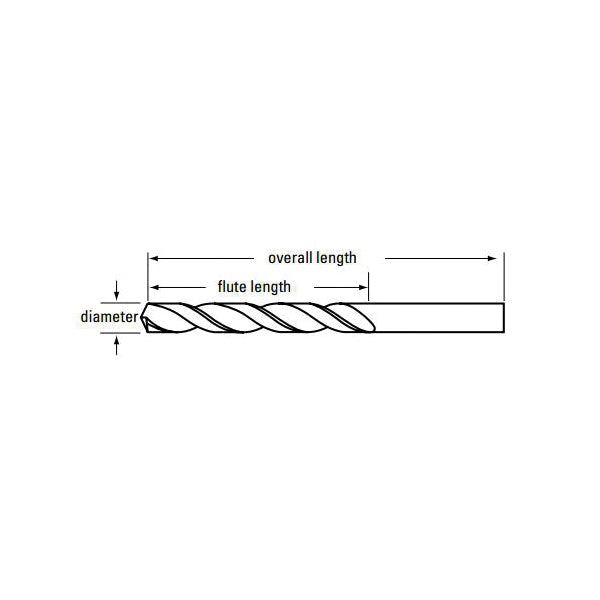

Technical Specifications

• Type: Heavy Duty
• Material: M42 HSS-Co 8%
• Finish: Straw Oxide
• Overall Length: 1-1/2 in
• Flute Length: 5/8 in
• Number of Flutes: 2
• Point Type: Split
• Point Angle: 135 deg
• Cutting Depth: 5XD
• Drill Size - Wire: #63
• Drill Size - Decimal Inch: 0.037 in
• Drilling Direction: Right Hand
• Drill Diameter Measurement System: Imperial
• Through Coolant: No
• Flute Type: Right Spiral
