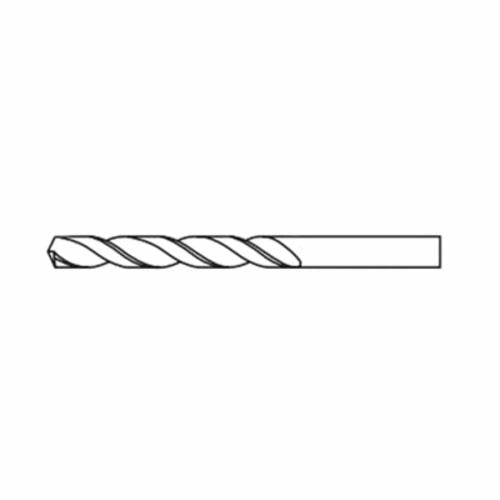

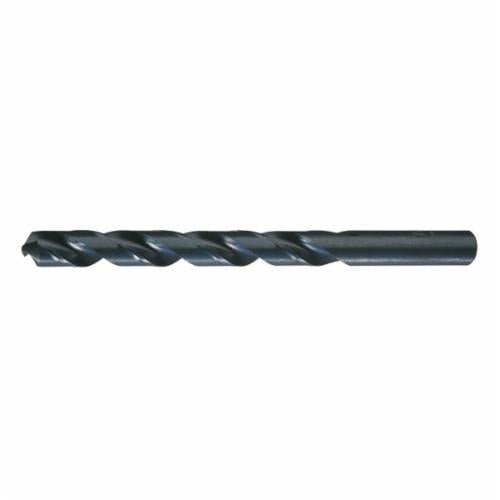

Chicago-Latrobe GREIN-45687CL Jobber Length Drill Bit 150ASP #17 Drill - Wire 0.173 in

Product Description

The Chicago-Latrobe GREIN-45687CL is a heavy-duty jobber length drill bit built for efficient drilling in hard materials. This bit features a #17 drill size, 0.173 inch diameter, and is made from high-speed steel with a black oxide finish for durability. The design includes a 135-degree split point that enhances penetration and reduces thrust during use.

• Heavy-duty construction suited for tough materials
• Self-centering 135-degree split point
• Right spiral design for effective drilling

Product Highlights

This drill bit is ideal for professionals who require reliable performance when drilling in alloy steel, cast iron, stainless steel, and tool steel. The 5XD cutting depth and right hand cutting direction ensure precise and safe operation.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-45687CL

Technical Specifications

• Applicable Materials: Alloy Steel, Cast Iron, Stainless Steel, Tool Steel
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 2-3/16 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-3/8 inches
• Point Type: Split
• Shank Size: 0.173 inches diameter x 1.1875 inches length
• Shank Type: Straight
• Drill Size - Wire: #17
• Drill Size - Decimal Inch: 0.173 inches
• Point Angle: 135 degrees
• Finish: Black Oxide
• Through Coolant: No
