Chicago-Latrobe GREIN-45675CL Jobber Length Drill Bit Heavy Duty #5 Drill - Wire Replacement MPN

Product Description

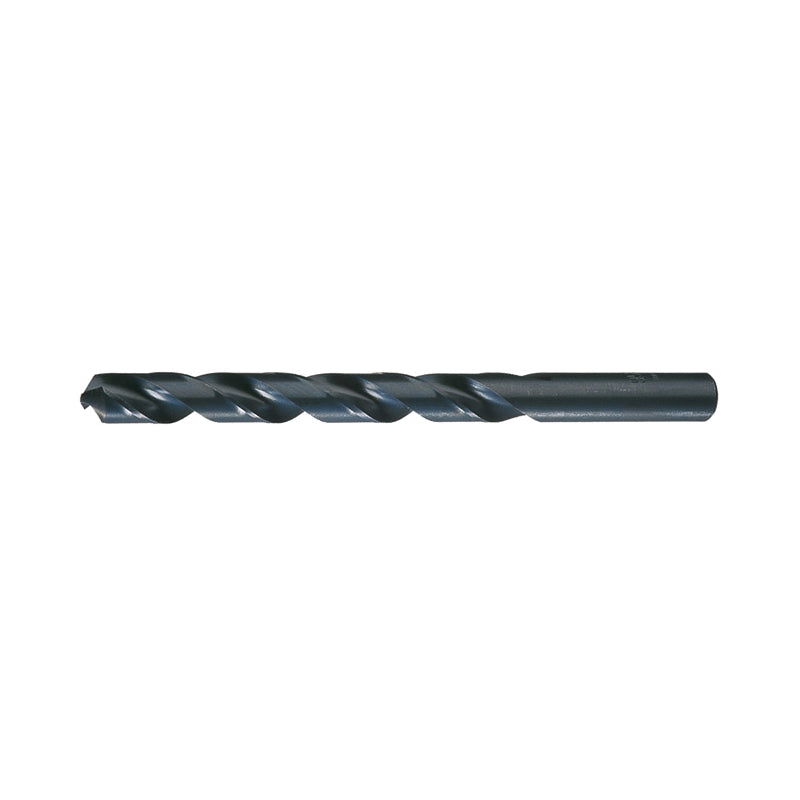

The Chicago-Latrobe GREIN-45675CL is a heavy-duty jobber length drill bit designed for durability and efficiency. This drill bit features a #5 wire size and a decimal inch measurement of 0.2055. It is suitable for various materials including alloy steel and stainless steel, making it versatile for many applications.

• Constructed for heavy-duty performance
• Two flutes with a 135-degree split point design
• Overall length of 3-3/4 inches for better reach

Product Highlights

This drill bit is suitable for tougher materials, providing efficiency and effectiveness in drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-45675CL

Technical Specifications

• Type: Heavy Duty
• Material: HSS
• Finish: Black Oxide
• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #5
• Drill Size - Decimal Inch: 0.2055 in

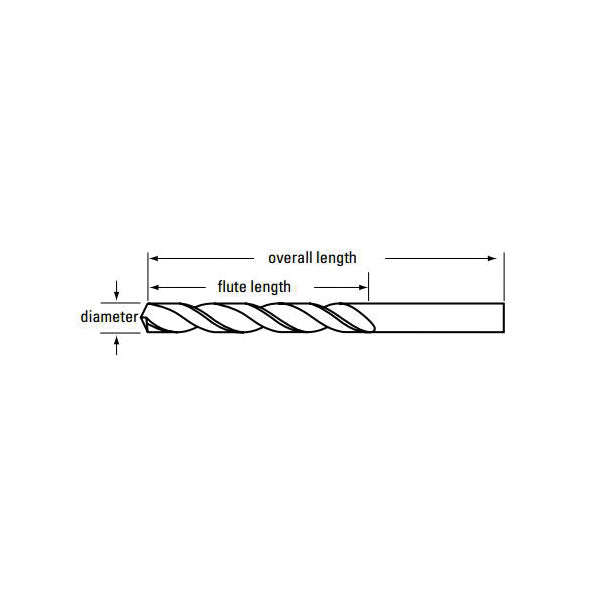

• Overall Length: 3-3/4 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Cutting Depth: 5XD
• Point Type: Split
• Point Angle: 135 deg
• Cutting Direction: Right Hand
• Flute Length: 2-1/2 in
• Shank Size: 0.2055 in Dia x 1.25 in L
• Shank Type: Straight
• Through Coolant: No
