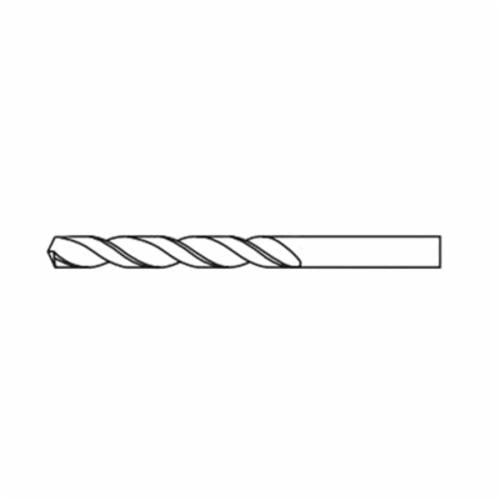

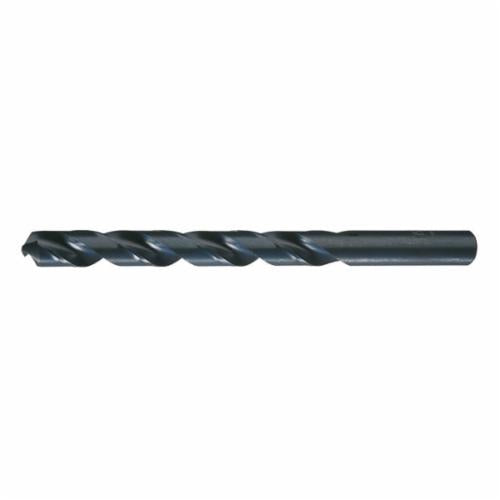

Chicago-Latrobe GREIN-45671CL 150ASP Heavy Duty Jobber Length Drill Bit

Product Description

The Chicago-Latrobe GREIN-45671CL is a heavy-duty jobber length drill bit specifically designed for drilling in tough materials. This drill bit features a diameter of point two twenty-eight inches and a cutting depth of five times the diameter (5XD). It is constructed from high-speed steel (HSS) and has a black oxide finish for improved durability.

• Suitable for drilling alloy steel, cast iron, stainless steel, and tool steel.
• Right spiral flute design optimizes chip removal.
• Split point design for self-centering to reduce thrust and enhance penetration.

Product Highlights

This product is well suited for use in a variety of applications requiring a sturdy drill bit capable of handling tough materials.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Part Number: GREIN-45671CL

Technical Specifications

• Type: Heavy Duty
• Material: HSS
• Finish: Black Oxide
• Series: 150ASP
• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #1
• Drill Size - Decimal Inch: 0.228 in
• Overall Length: 3-7/8 in
• Flute Length: 2-5/8 in
• Flute Type: Right Spiral
• Point Type: Split
• Point Angle: 135 deg
• Cutting Direction: Right Hand
• Number of Flutes: 2
• Cutting Edge Material: HSS
• Cutting Depth: 5XD
• Through Coolant: No
• Applicable Materials: Alloy Steel, Cast Iron, Stainless Steel, Tool Steel
